Product Model

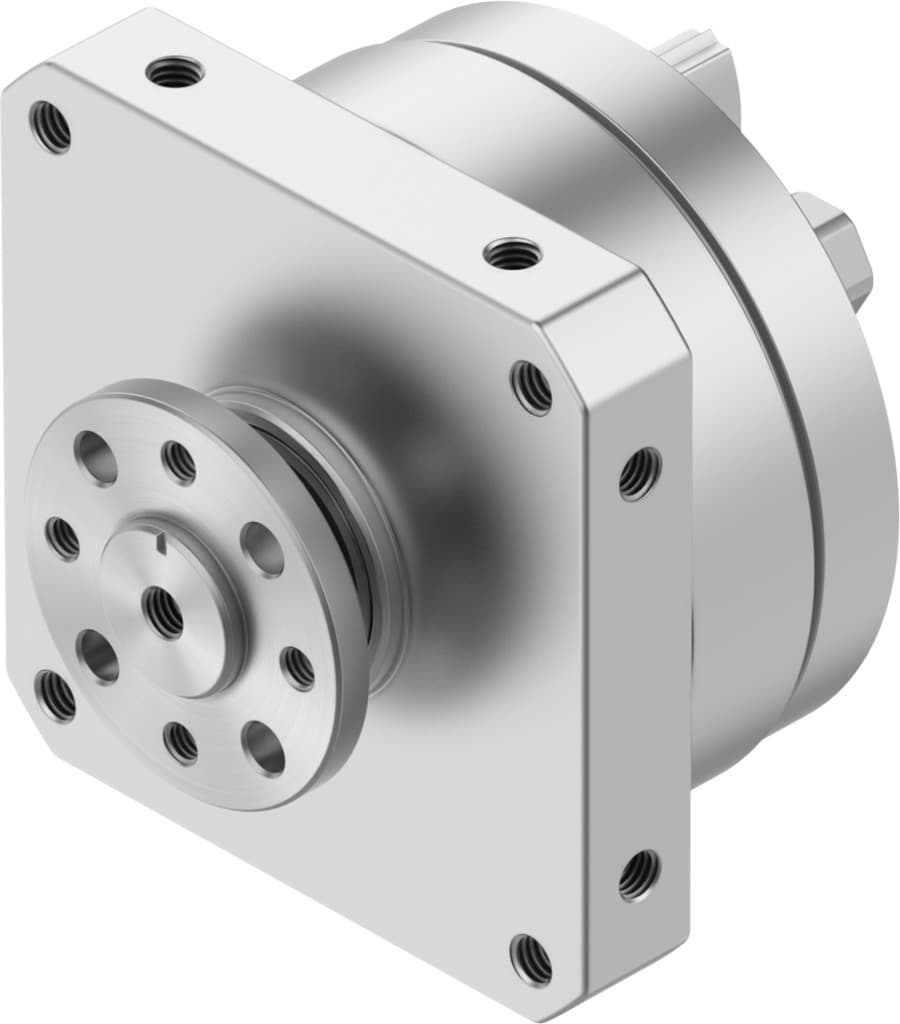

dsm-16-270-fw-a-b
Selling Points
- 1The DSM-16-270-FW-A-B offers a rotation angle adjustment range of 0 to 270 degrees, ensuring precise control in your applications.
- 2Equipped with flexible cushioning rings at both ends, this actuator provides smooth operation and reduces shock impacts.
- 3Designed for double-acting operation, the DSM-16-270-FW-A-B can handle both extension and retraction movements efficiently.
- 4Featuring position sensing, this actuator ensures accurate positioning and detection, enhancing overall system reliability.
- 5Compatible with operating pressures from 1.8 to 10 bar, the DSM-16-270-FW-A-B is versatile for various industrial pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 30N | Max. radial force | 75N |
Theoretical torque at 6 bar | 2.5Nm | Product weight | 450g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547597 |
