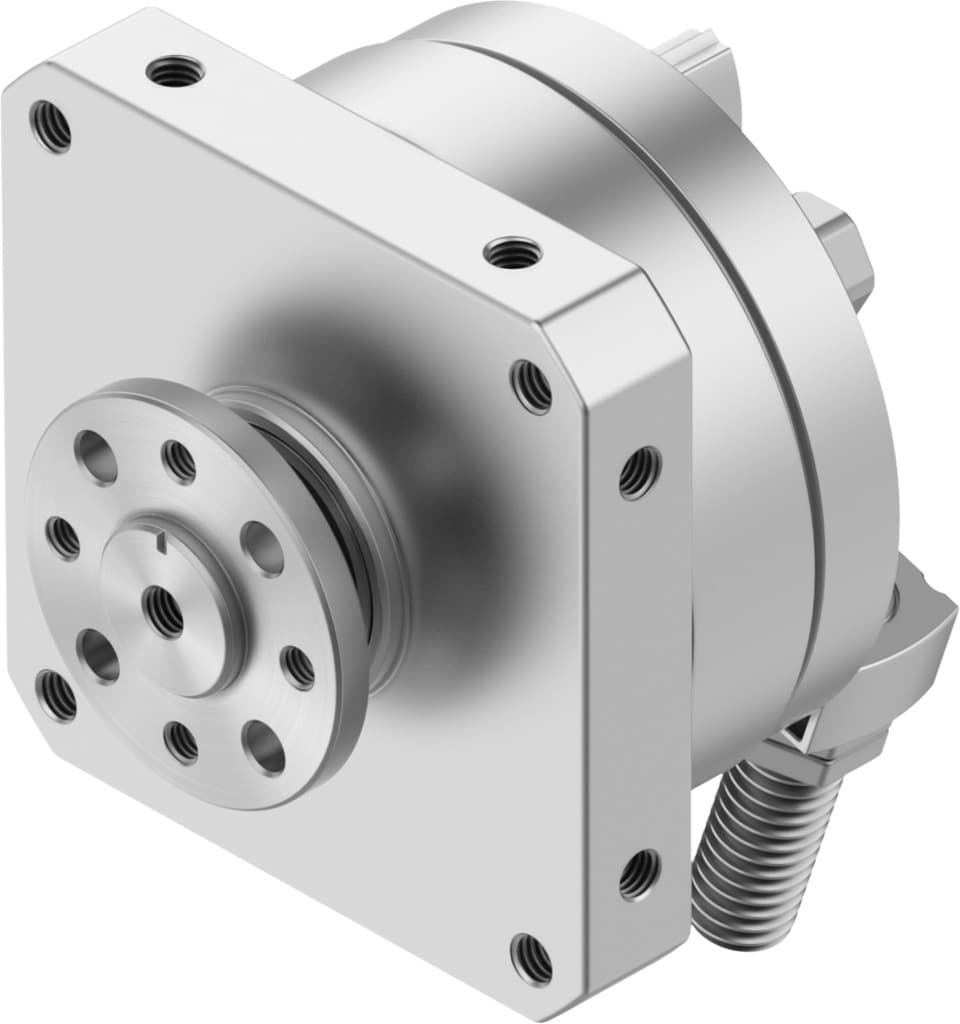

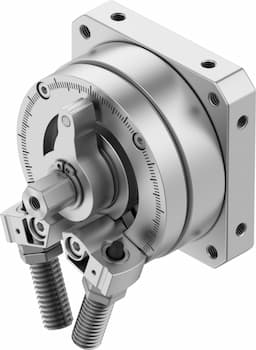

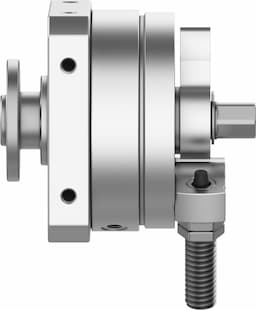

Product Model
dsm-16-270-p1-fw-a-b
Selling Points
- 1Precision Rotation: Offers 270° rotation with precise adjustment range.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends for smooth operation.
- 3Adjustable Swivel: Infinitely adjustable swivel angle from 0 to 246 degrees.
- 4Robust Design: Constructed with steel drive shaft and nickel-plated material for durability.
- 5Compliant with Standards: Meets ISO 8573-1:2010 and VDMA24364-B1/B2-L standards for pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Cushioning angle | 9deg |
Adjustment range of swivel angle | 0deg 246deg | Swivel angle | 0deg 246deg |
Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 30N |
Max. radial force | 75N | Theoretical torque at 6 bar | 2.5Nm |
Permissible mass moment of inertia | 0.03kgm2 | Product weight | 515g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 566206 |
Specifications may be subject to change without notice
