Product Model

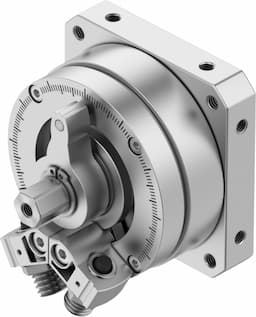

dsm-16-270-p-fw-a-b
Selling Points
- 1High Precision Rotation: The DSM-16-270-P-FW-A-B offers a rotation angle adjustment range of 0 to 270 degrees, ensuring precise control in your automation applications.
- 2Flexible Cushioning: Equipped with flexible cushioning rings/plates at both ends, this semi-rotary drive provides enhanced durability and smooth operation.
- 3Double-Acting Design: Designed for double-acting operation, the DSM-16-270-P-FW-A-B can handle both forward and reverse movements efficiently.
- 4Position Detection: Compatible with proximity sensors, this drive allows for accurate position detection, ensuring reliable operation in your automation systems.
- 5Wide Operating Pressure Range: Operating within a pressure range of 1.8 to 10 bar, the DSM-16-270-P-FW-A-B is versatile and suitable for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Cushioning angle | 1.4deg |
Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.8bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 30N | Max. radial force | 75N |
Theoretical torque at 6 bar | 2.5Nm | Permissible mass moment of inertia | 0.01kgm2 |
Product weight | 510g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 547575 |
Specifications may be subject to change without notice
