Product Model
dsm-25-270-a-b
Selling Points

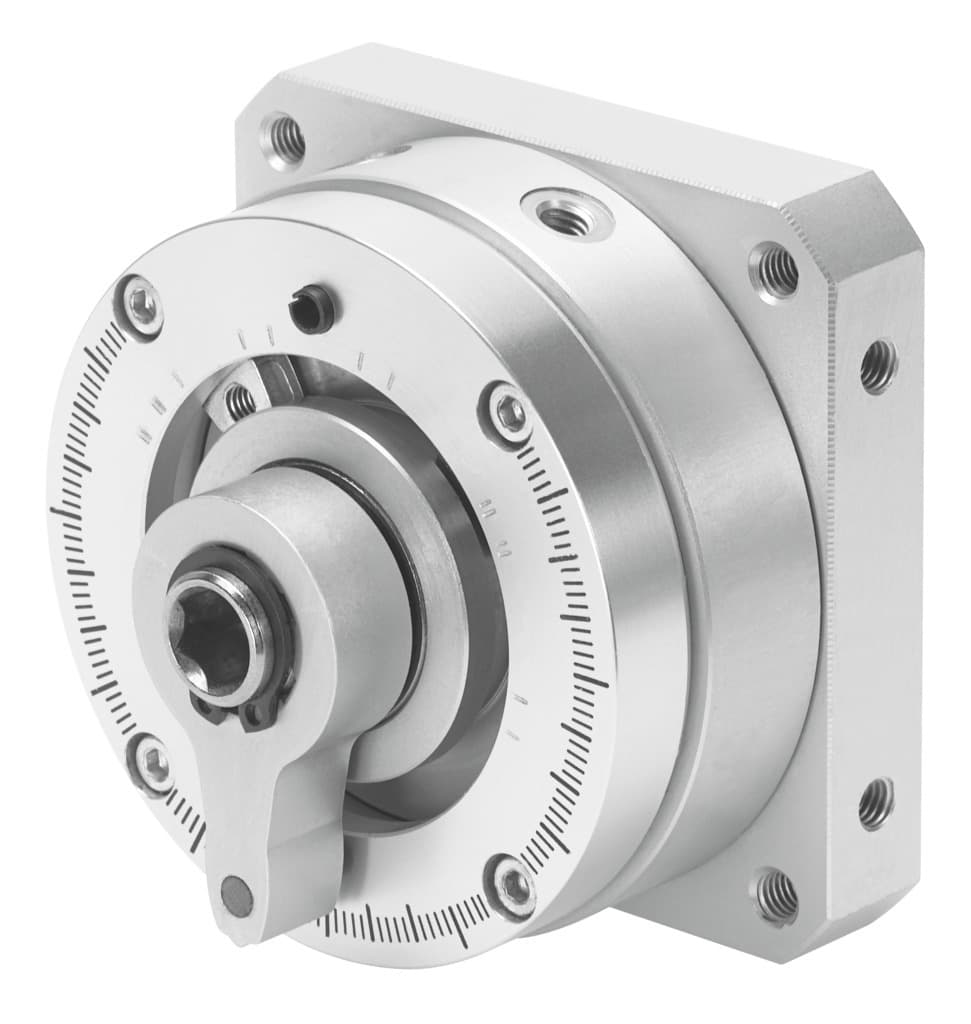

- 1The Festo DSM-25-270-A-B semi-rotary drive is designed for double-acting operation, providing precise control and efficient movement in a wide range of industrial applications.
- 2With a swivel angle of 0 to 270 degrees, this drive offers flexible positioning and can be mounted in any arbitrary position, making it versatile for various automation needs.
- 3The DSM-25-270-A-B operates with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance and minimal maintenance requirements.
- 4Equipped with nickel-plated steel drive shafts and TPE-U(PU) seals, this semi-rotary drive is corrosion-resistant and durable, suitable for harsh industrial environments.
- 5The Festo DSM-25-270-A-B features a maximum swivel frequency of 2 Hz at 6 bar, making it suitable for high-speed applications while maintaining precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 50N | Max. radial force | 120N |
Theoretical torque at 6 bar | 5Nm | Product weight | 620g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547593 |
Specifications may be subject to change without notice
