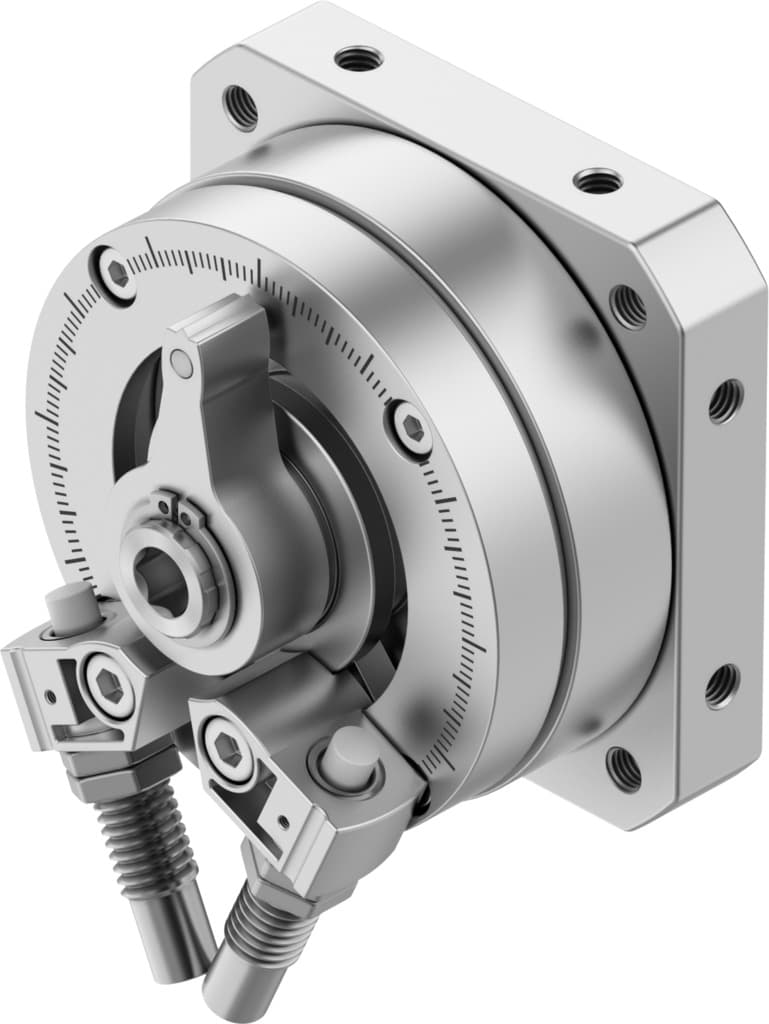

Festo DSM-25-270-CC-A-B Rotary Actuator - High Precision Automation

Selling Points

1The Festo DSM-25-270-CC-A-B rotary actuator offers a semi-rotary drive with a 270° swivel angle, providing versatile motion control in various applications.
2With a diameter of 25mm, this actuator is compact and efficient, making it suitable for a wide range of industrial automation needs.
3The DSM-25-270-CC-A-B features a spigot shaft, ensuring secure and precise mounting, which is crucial for reliable operation in demanding environments.
4This rotary actuator is designed for use with compressed air, operating within a pressure range of 0.15 MPa to 1 MPa, making it compatible with various pneumatic systems.
5The Festo DSM-25-270-CC-A-B includes advanced features like cushioning and shock absorption, ensuring smooth operation and reducing wear and tear on the actuator.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Cushioning angle	10deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.5bar 10bar
Max. swivel frequency at 6?bar	1Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	50N
Max. radial force	120N	Theoretical torque at 6 bar	5Nm
Permissible mass moment of inertia	0.03kgm2	Product weight	710g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	547580

Specifications may be subject to change without notice
