Product Model
dsm-25-270-fw-a-b
Selling Points

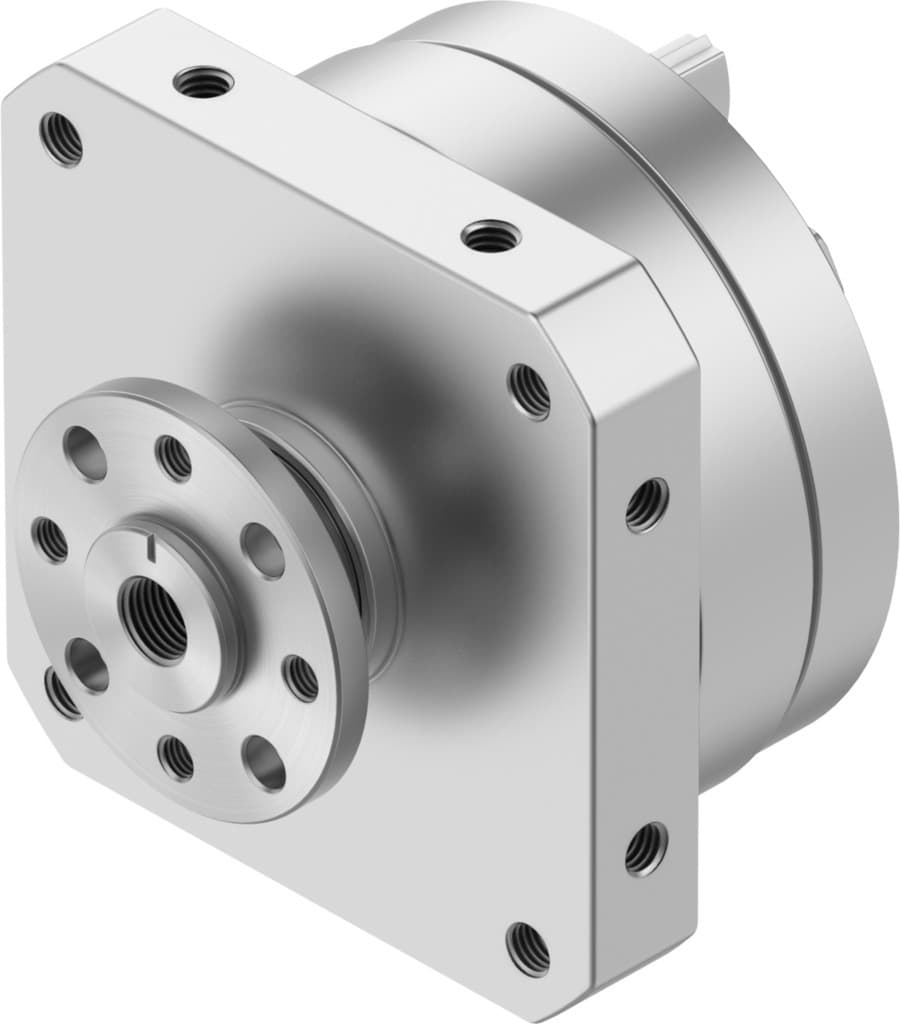

- 1The Festo DSM-25-270-CC-FW-A-B semi-rotary drive is engineered for precision automation, ensuring smooth and controlled movements in various applications.
- 2Equipped with shock absorbers at both ends, this drive provides cushioning and stability, reducing wear and tear on the system.
- 3Featuring position sensing capabilities, the DSM-25-270-CC-FW-A-B allows for precise control and detection, enhancing overall system accuracy.
- 4Designed to operate with compressed air in accordance with ISO8573-1:2010, this drive is suitable for a wide range of pneumatic applications.
- 5With an arbitrary installation position and adjustable swivel angle (0-246 degrees), the DSM-25-270-CC-FW-A-B offers flexibility in system design and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 50N | Max. radial force | 120N |
Theoretical torque at 6 bar | 5Nm | Product weight | 645g |
Type of mounting | With internal thread | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547598 |
