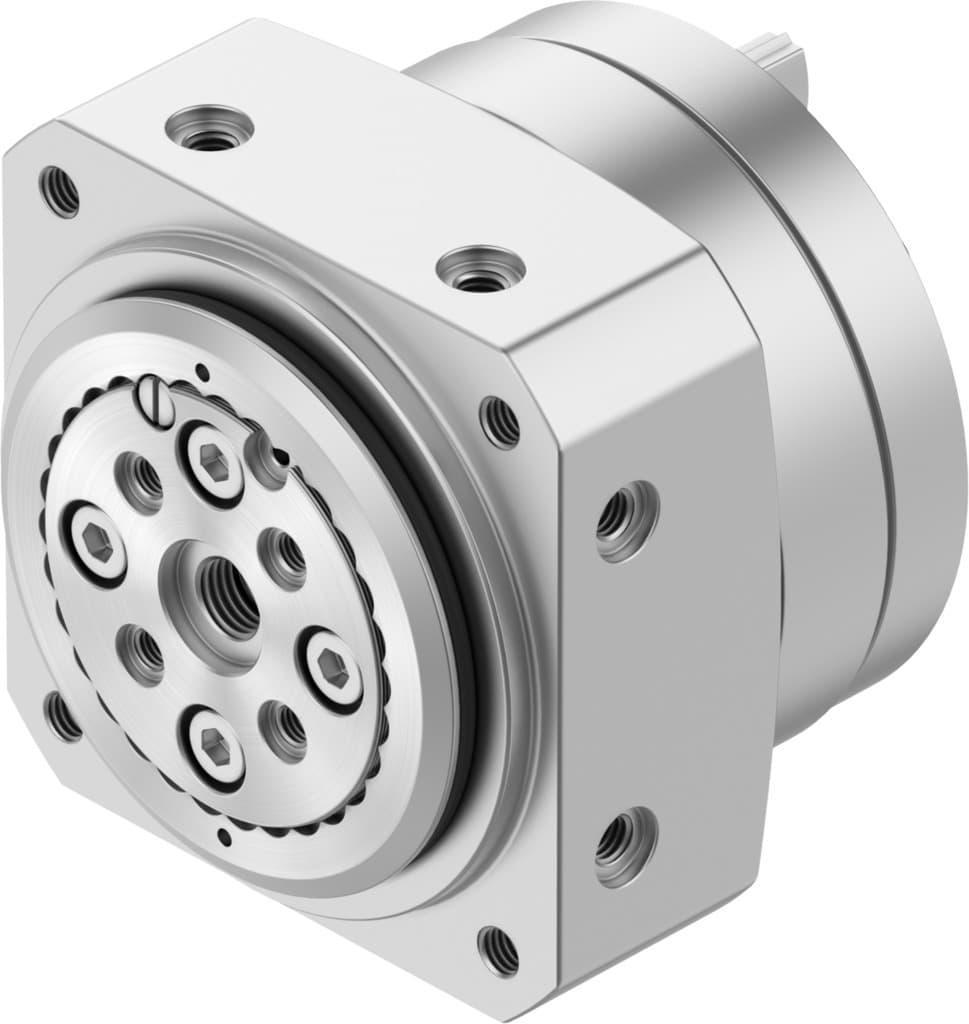

Product Model
dsm-25-270-hd-a-b
Selling Points
- 1The Festo DSM-25-270-HD-A-B semi-rotary drive offers a wide swivel angle of 0 to 270 degrees, providing versatile positioning in various industrial applications.
- 2Equipped with double-acting operation, this drive ensures efficient and reliable performance in both directions, making it ideal for demanding tasks.
- 3With a robust vane design and nickel-plated steel drive shaft, the DSM-25-270-HD-A-B provides durability and resistance to corrosion, ensuring long-lasting operation.
- 4The drive features position detection via proximity switch, allowing for precise control and monitoring of its movements, enhancing overall system accuracy.
- 5Operating within a pressure range of 0.2 to 1 MPa (2 to 10 bar), the DSM-25-270-HD-A-B is compatible with compressed air systems to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 350N |
Max. radial force | 450N | Theoretical torque at 6 bar | 5Nm |
Product weight | 950g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369112 |
