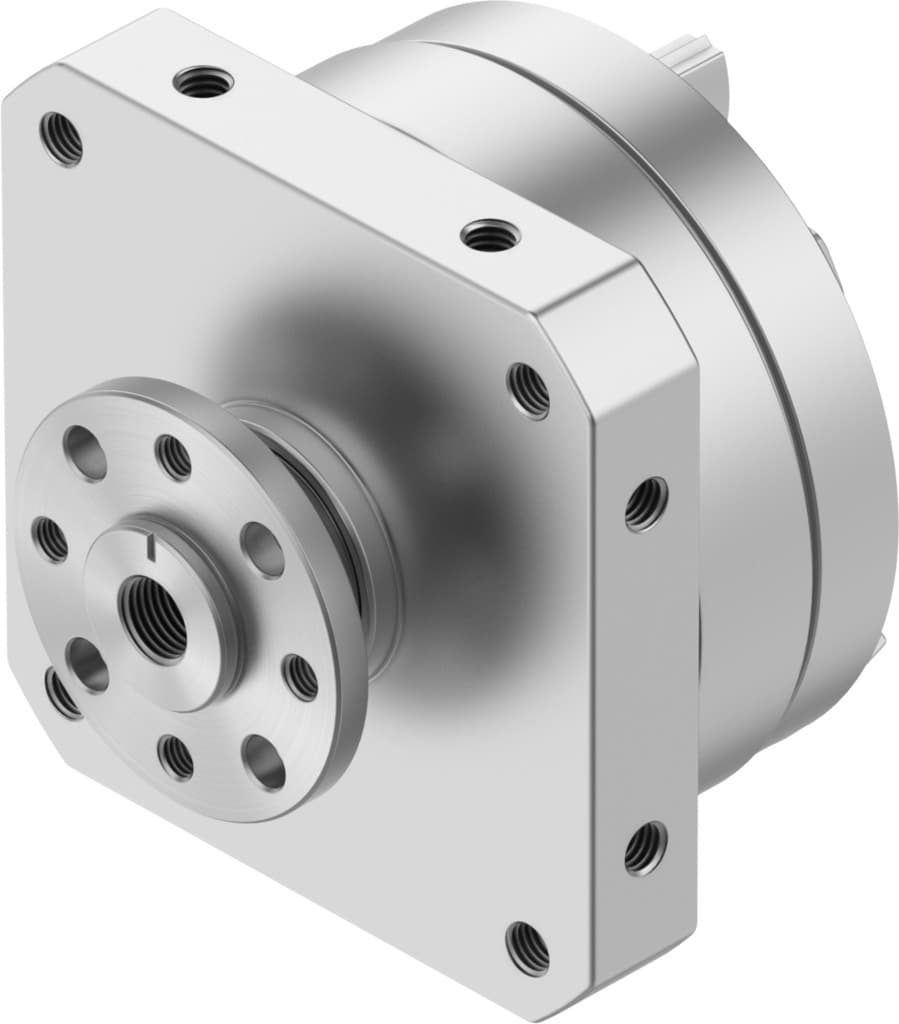

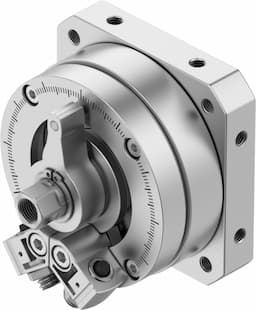

Festo DSM-25-270-P-FW-A-B Semi-Rotary Drive | High-Quality Automation Solution

Selling Points

1The Festo DSM-25-270-P-FW-A-B semi-rotary drive features an infinitely adjustable swivel angle from 0 to 270 degrees, ensuring precise control in various automation applications.
2Equipped with elastic cushioning rings or plates, this drive provides smooth operation and reduces vibrations, enhancing overall system stability.
3Designed for use with compressed air to ISO 8573-1:2010, this drive operates efficiently within a wide range of pressures (1.5 to 10 bar).
4Compatible with proximity switches, the DSM-25-270-P-FW-A-B allows for accurate position detection, ensuring reliable operation in complex automation systems.
5With an arbitrary installation position and fine adjustment capabilities, this semi-rotary drive can be easily integrated into various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Cushioning angle	1.2deg
Adjustment range of swivel angle	0deg 270deg	Swivel angle	0deg 270deg
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Precision adjustment	-6deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.5bar 10bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 60°C
Max. axial force	50N	Max. radial force	120N
Theoretical torque at 6 bar	5Nm	Permissible mass moment of inertia	0.015kgm2
Product weight	725g	Type of mounting	With internal thread
Pneumatic connection	M5	Note on materials	RoHS-compliant
Drive shaft material	Steel Nickel-plated	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy	Manufacturer ID	547579

Specifications may be subject to change without notice
