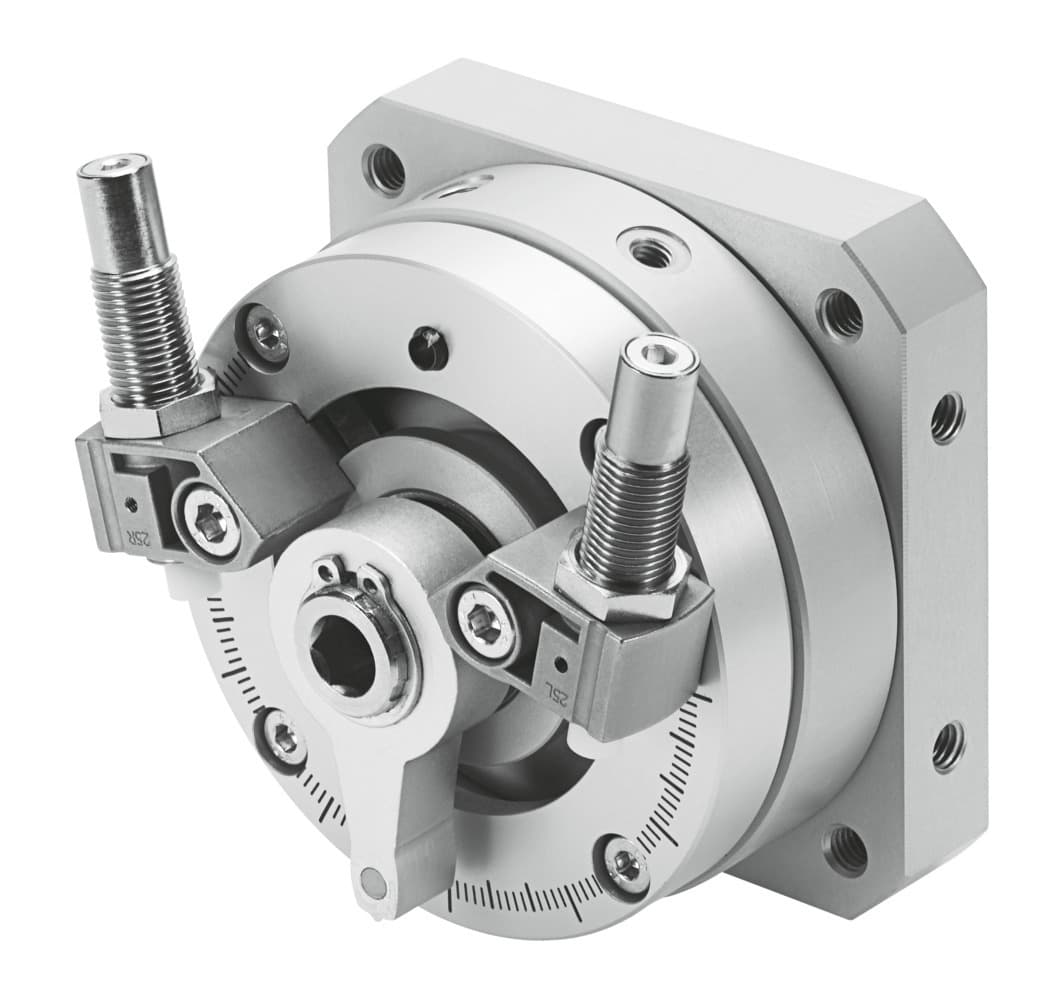

Festo DSM-32-270-CC-A-B Semi-Rotary Drive | High Precision Pneumatic Solution

Selling Points

1The Festo DSM-32-270-CC-A-B semi-rotary drive offers precise rotation and swivel angles, ensuring reliable performance in various pneumatic applications.
2Equipped with shock absorbers at both ends, this drive provides excellent cushioning and reduces vibrations, enhancing overall system stability.
3With a rotation angle adjustment range of 0 to 246 degrees and a swivel angle of 0 to 246 degrees, this drive offers versatile positioning options.
4Designed for double-acting operation, the DSM-32-270-CC-A-B can handle both forward and reverse movements, increasing its operational flexibility.
5Compatible with compressed air according to ISO 8573-1:2010, this drive ensures reliable operation in a variety of industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	32	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	1.5bar 10bar
Max. swivel frequency at 6?bar	0.7Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	75N
Max. radial force	200N	Theoretical torque at 6 bar	10Nm
Permissible mass moment of inertia	0.05kgm2	Product weight	1460g
Type of mounting	With internal thread	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	547584
