dsm-32-270-cc-fw-a-b

Selling Points

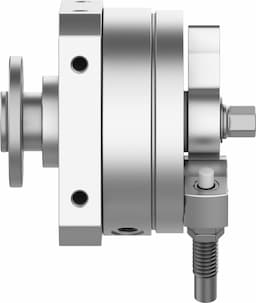

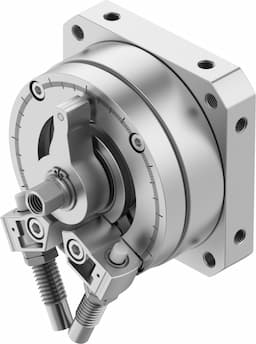

• 1The Festo DSM-32-270-CC-FW-A-B rotary actuator offers a cushioning angle of 12 degrees, ensuring smooth operation and minimizing shock impacts. Its adjustable swivel angle range from 0 to 246 degrees provides versatility in various applications.
• 2This rotary actuator is designed with pneumatic shock absorbers at both ends, providing enhanced stability and durability. It can operate within a pressure range of 0.15 MPa to 1 MPa, making it suitable for a variety of industrial settings.
• 3The DSM-32-270-CC-FW-A-B features precision adjustment, allowing for precise control over its swivel angle. It is also designed for double-acting operation, ensuring reliable performance in demanding applications.
• 4With a maximum swivel frequency of 0.7 Hz at 6 bar, this rotary actuator is optimized for high-speed operations. Its corrosion resistance class (CRC) is 0, indicating no corrosion stress, ensuring long-lasting performance.
• 5The Festo DSM-32-270-CC-FW-A-B rotary actuator is compatible with compressed air as per ISO 8573-1:2010, ensuring compliance with international standards. It also supports ambient temperatures ranging from -10°C to 60°C, making it suitable for a wide range of environments.
