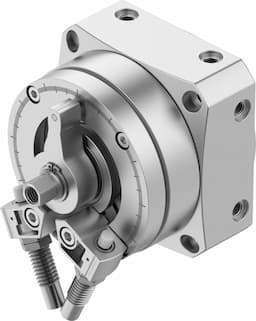

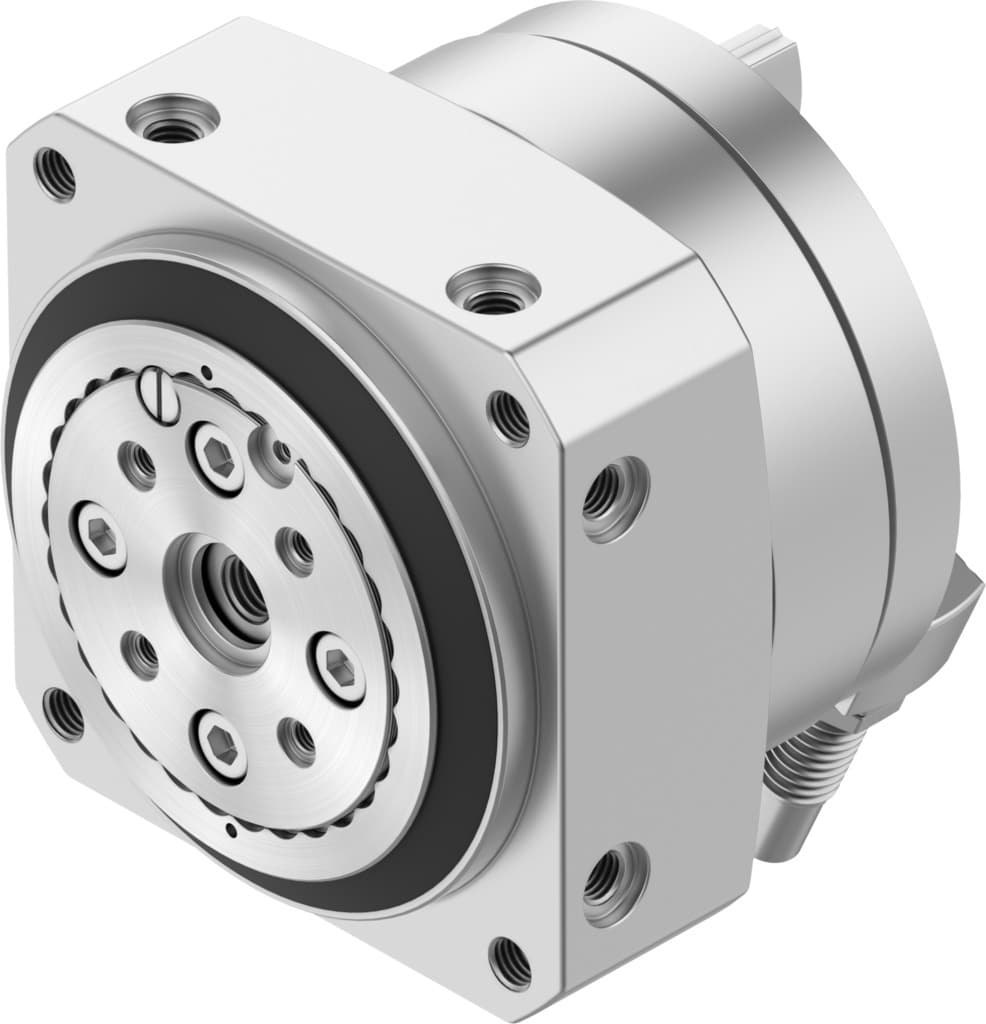

Festo DSM-32-270-CC-HD-A-B Semi-Rotary Drive | High-Performance Automation Solution

Selling Points

1The Festo DSM-32-270-CC-HD-A-B semi-rotary drive is designed for high-load applications, offering a 10 Nm theoretical torque at 0.6 MPa (6 bar, 87 psi).
2This drive features adjustable cushioning with a 12° cushioning angle, ensuring smooth operation and minimizing shock during rotation.
3Equipped with position detection via proximity switch, the DSM-32-270-CC-HD-A-B provides precise control over the swivel angle, from 0° to 246°.
4The drive offers optional mounting positions and fine adjustments up to -3°, allowing for flexible integration into various automation systems.
5Built with steel material for the drive shaft and nickel-plated material for added durability, the DSM-32-270-CC-HD-A-B ensures long-lasting performance in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	32	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	0.5Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C 60°C	Max. axial force	450N
Max. radial force	550N	Theoretical torque at 6 bar	10Nm
Permissible mass moment of inertia	0.005kgm2	Product weight	2020g
Type of mounting	With internal thread	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1369125

Specifications may be subject to change without notice
