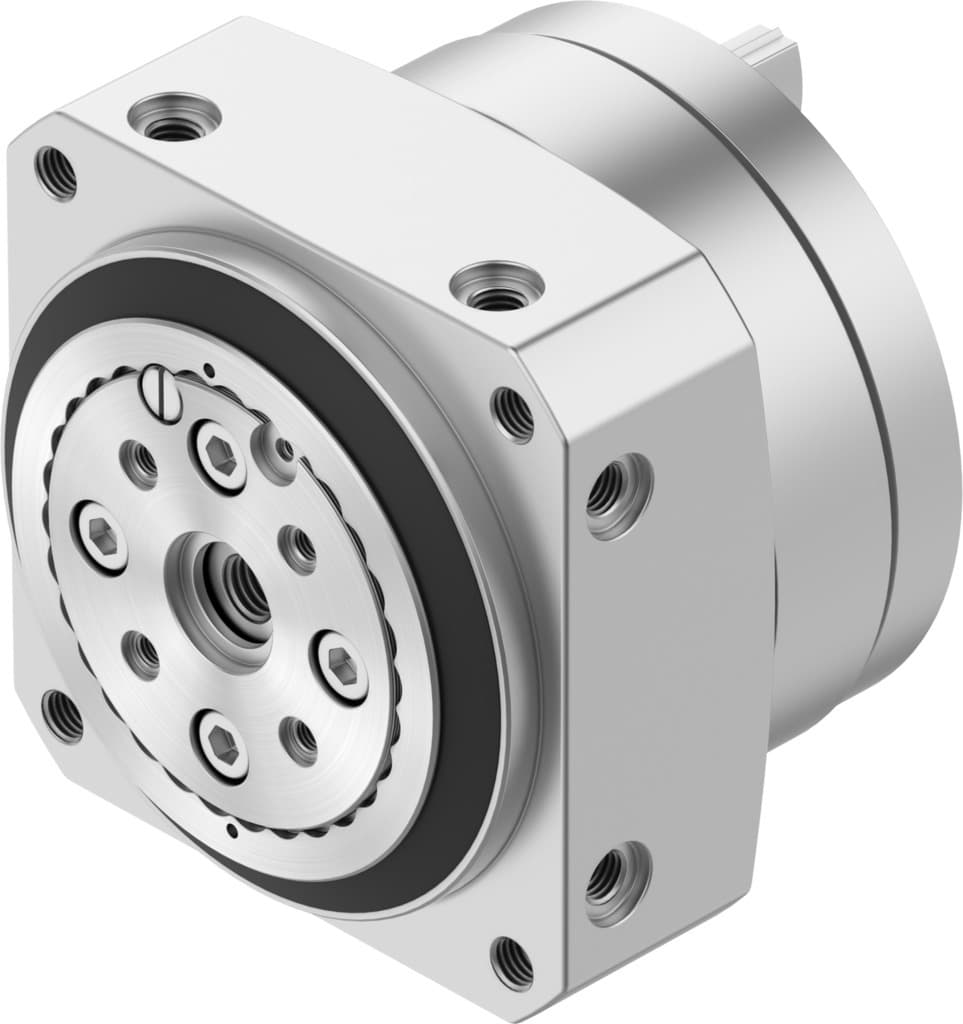

Product Model
dsm-32-270-hd-a-b
Selling Points
- 1The DSM-32-270-HD-A-B offers a wide swivel angle of 0 to 270 degrees, providing flexibility in various industrial applications.
- 2This rotary actuator operates double-acting, allowing for precise control and efficient movement in both directions.
- 3The actuator features a robust rotary vane design, ensuring durability and reliability in demanding environments.
- 4Equipped with position sensing via proximity switch, this actuator provides accurate positioning and control.
- 5Designed to operate with compressed air to ISO 8573-1:2010, making it suitable for a wide range of industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 450N |
Max. radial force | 550N | Theoretical torque at 6 bar | 10Nm |
Product weight | 1810g | Type of mounting | With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369113 |
Specifications may be subject to change without notice
