Product Model
dsm-32-270-p-fw-a-b
Selling Points

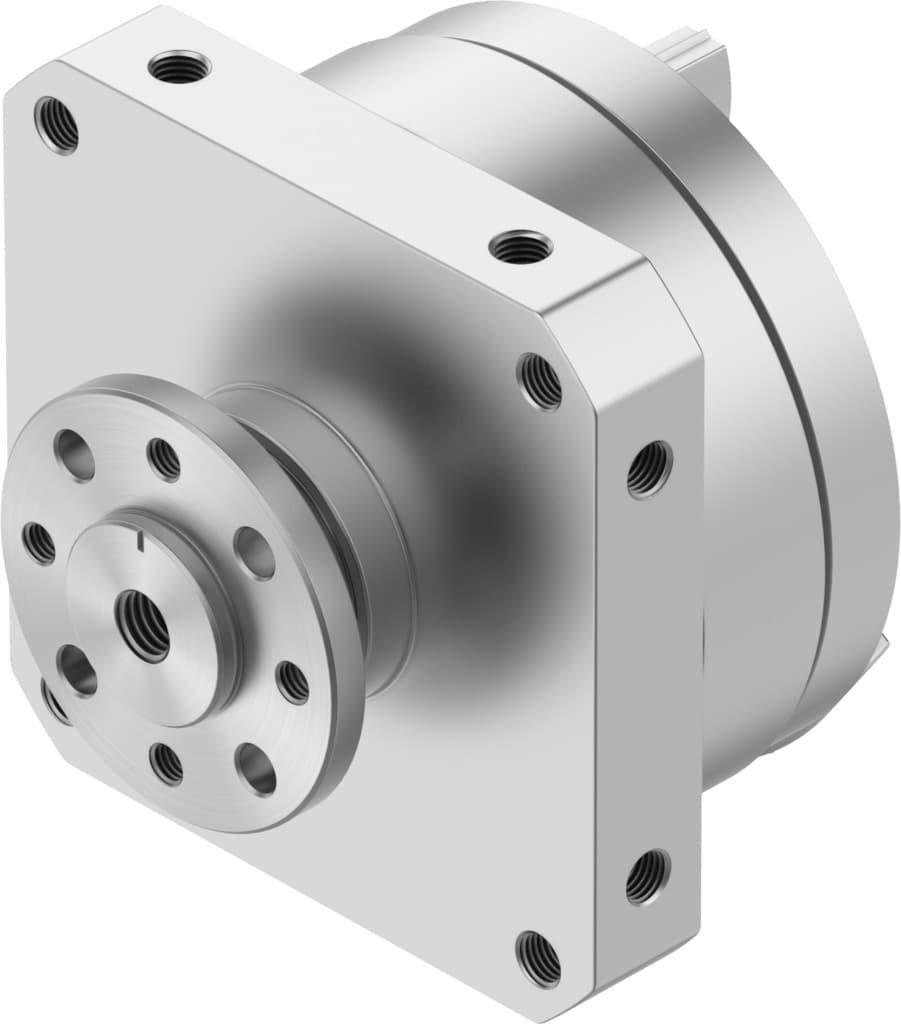

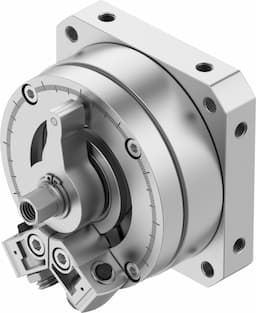

- 1The Festo DSM-32-270-P-FW-A-B semi-rotary drive features a 32mm size with a 270° swivel angle, making it versatile for various industrial applications.
- 2This actuator boasts a double-acting rotary vane design with elastic cushioning rings/plates at both ends, ensuring smooth operation and durability.
- 3With an operating pressure range of 1.5 to 10 bar and a maximum swivel frequency of 2 Hz at 6 bar, it offers high performance in demanding environments.
- 4The drive is constructed from corrosion-resistant materials, including nickel-plated steel for the drive shaft and TPE-U(PU) for seals, ensuring long-lasting reliability.
- 5The Festo DSM-32-270-P-FW-A-B is designed for easy installation with an optional position sensing feature via proximity switch, enhancing its usability in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Cushioning angle | 1.4deg |
Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
Max. axial force | 75N | Max. radial force | 200N |
Theoretical torque at 6 bar | 10Nm | Permissible mass moment of inertia | 0.025kgm2 |
Product weight | 1500g | Type of mounting | With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 547583 |
Specifications may be subject to change without notice
