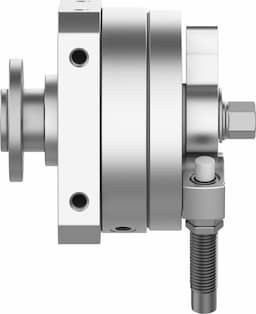

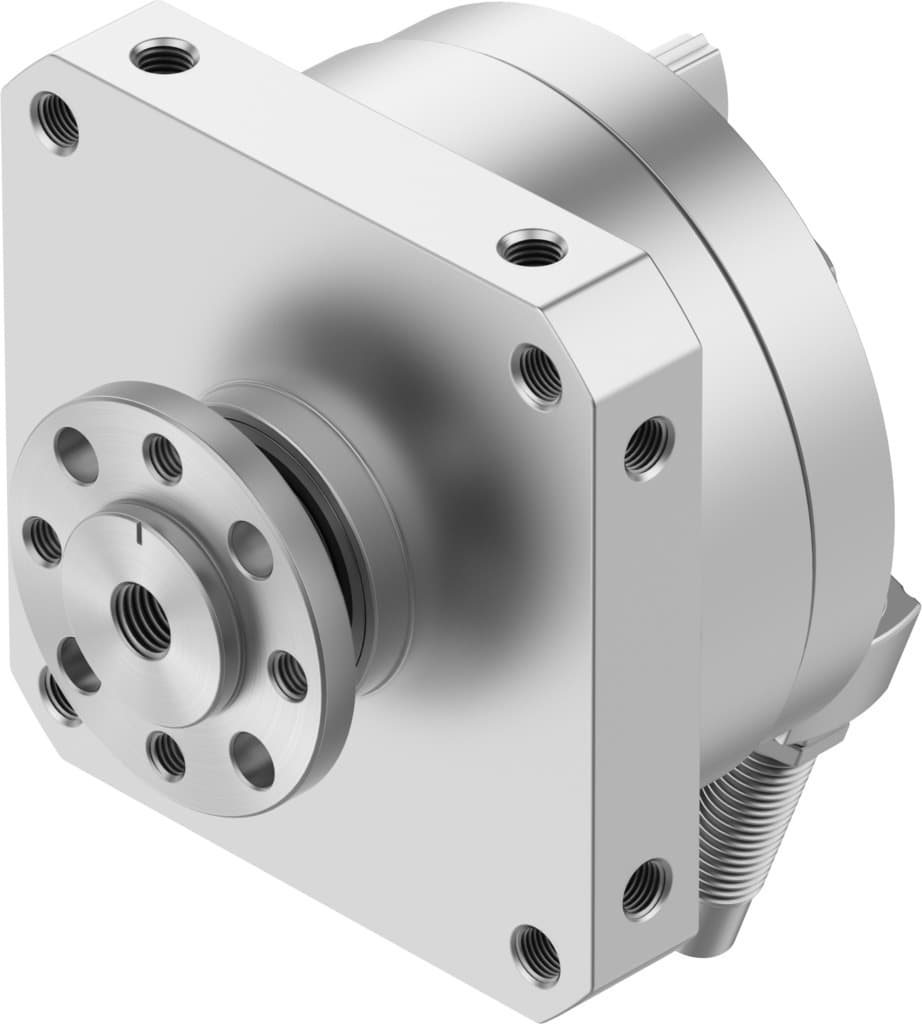

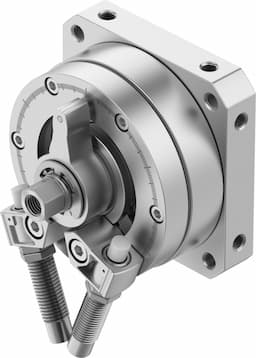

Product Model
dsm-40-270-cc-fw-a-b
Selling Points
- 1High Precision Swivel Angle: The Festo DSM-40-270-CC-FW-A-B offers an infinitely adjustable swivel angle of 0 to 240 degrees, ensuring precise control in various automation tasks.
- 2Double-Sided Shock Absorber: Equipped with a double-sided shock absorber, this semi-rotary drive provides enhanced dampening and stability, reducing wear and tear on the system.
- 3Wide Operating Pressure Range: Operating effectively within a pressure range of 1.5 to 10 bar, this drive is versatile and suitable for a variety of pneumatic applications.
- 4Compact Design with G1/8 Connection: The DSM-40-270-CC-FW-A-B features a compact design with a G1/8 pneumatic connection, making it easy to integrate into your automation setup.
- 5Robust Construction with Aluminum Housing: Built with an aluminum wrought alloy housing and nickel-plated steel drive shaft, this semi-rotary drive ensures durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Cushioning angle | 16deg |
Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 0.7Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 120N |
Max. radial force | 350N | Theoretical torque at 6 bar | 20Nm |
Permissible mass moment of inertia | 0.11kgm2 | Product weight | 2935g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 547589 |
Specifications may be subject to change without notice
