Product Model

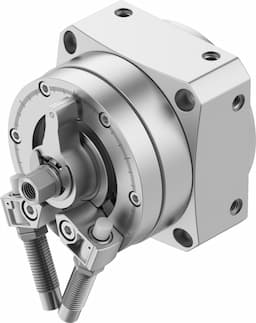

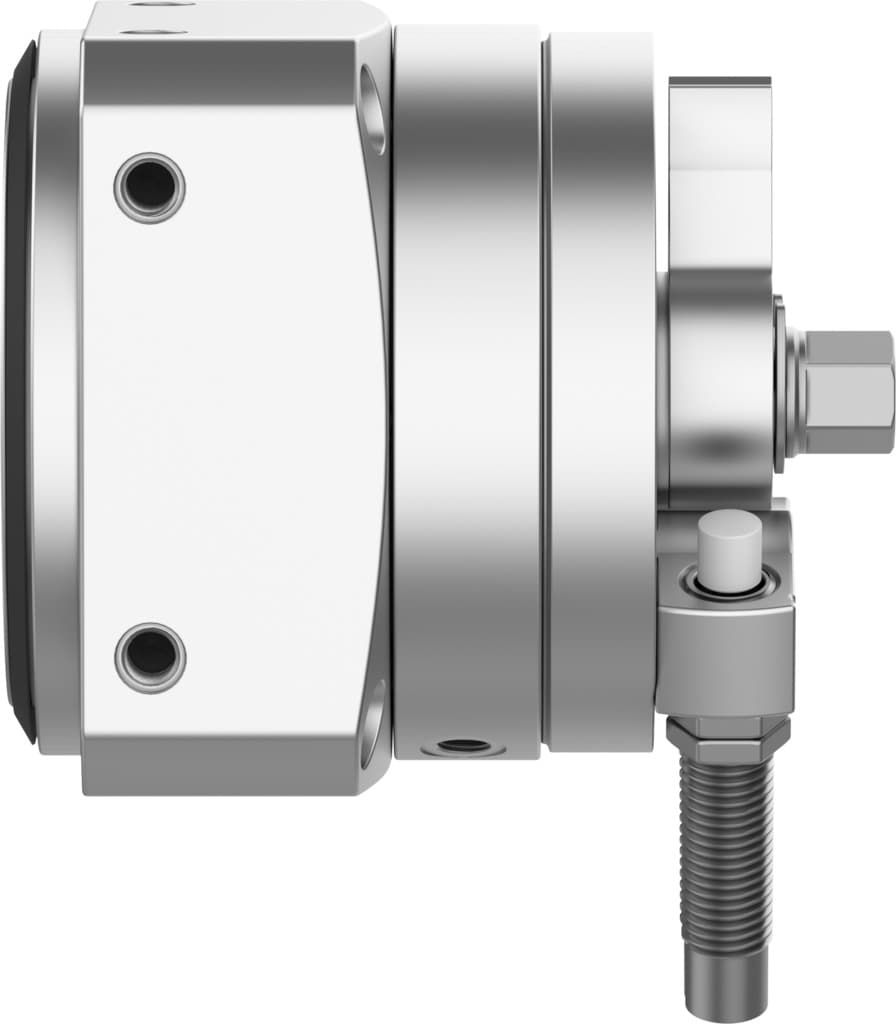

dsm-40-270-cc-hd-a-b
Selling Points
- 1The Festo DSM-40-270-CC-HD-A-B offers torques of up to 80 Nm, making it suitable for demanding industrial applications.
- 2This rotary actuator features an infinitely adjustable swivel angle, allowing for precise positioning and flexibility in various automation setups.
- 3Equipped with a heavy-duty bearing, this semi-rotary drive ensures high load torques and precise bearing with high running accuracy.
- 4The DSM-40-270-CC-HD-A-B offers various mounting options, including threaded through-holes and centring collars, for easy integration into different systems.
- 5Built with high-quality bearing elements and shock absorbers, this actuator provides reliable and durable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Cushioning angle | 16deg |
Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
Precision adjustment | -3deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 0.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 950N |
Max. radial force | 1200N | Theoretical torque at 6 bar | 20Nm |
Permissible mass moment of inertia | 0.11kgm2 | Product weight | 4030g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1369126 |
Specifications may be subject to change without notice
