Product Model

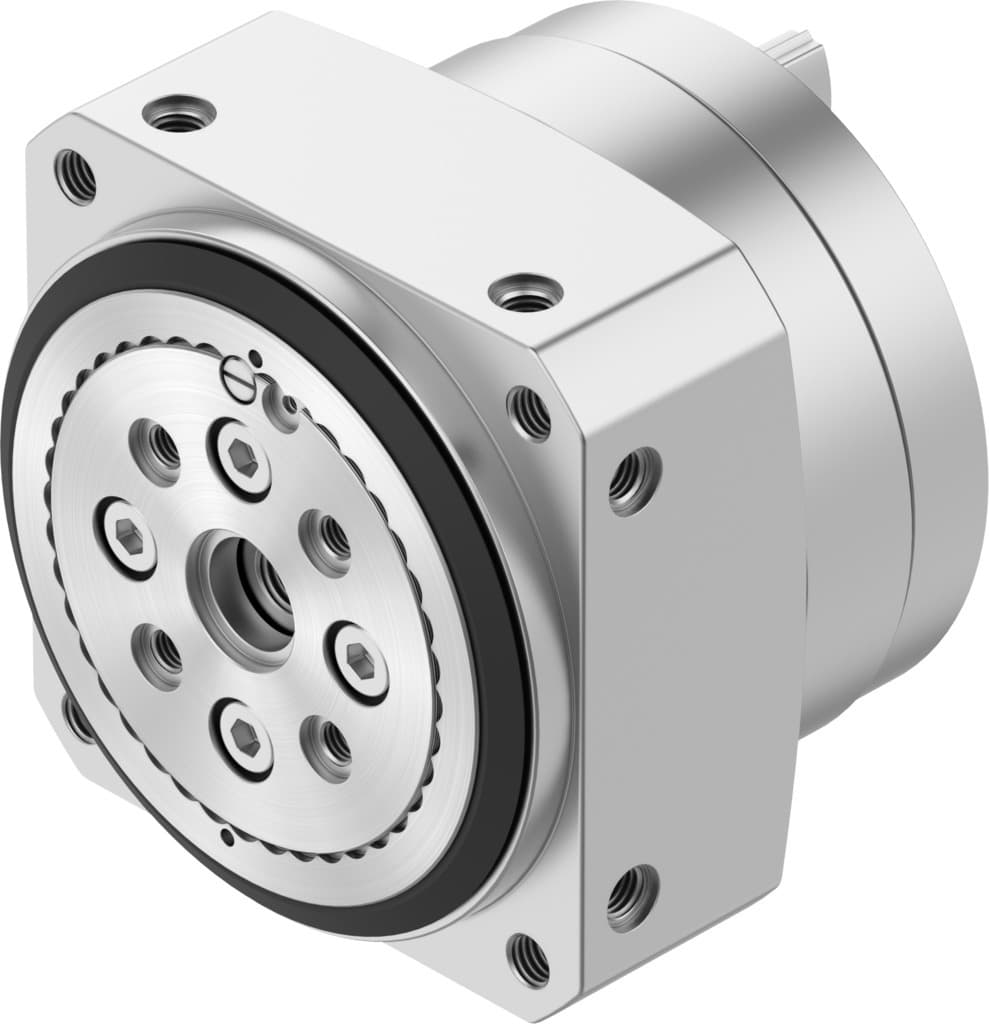

dsm-40-270-hd-a-b
Selling Points
- 1High Torque and Precision: The Festo DSM-40-270-HD-A-B semi-rotary drive offers torques of up to 80 Nm, ensuring precise and reliable operation in various industrial applications.
- 2Adjustable Swivel Angle: With a swivel angle range of 0 to 270 degrees, this drive provides flexibility and adaptability to different mechanical configurations.
- 3Heavy-Duty Bearing: Equipped with high-quality, backlash-free bearings, the DSM-40-270-HD-A-B supports heavy loads and maintains high running accuracy.
- 4Compressed Air Operation: Designed for operation with compressed air to ISO 8573-1:2010 standards, this drive ensures efficient and reliable performance in various environments.
- 5Versatile Mounting Options: Featuring various mounting options including threaded through-holes and centring collars, the DSM-40-270-HD-A-B offers easy integration into diverse mechanical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1.5Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 950N |
Max. radial force | 1200N | Theoretical torque at 6 bar | 20Nm |
Product weight | 3712g | Type of mounting | With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369114 |
Specifications may be subject to change without notice
