Product Model

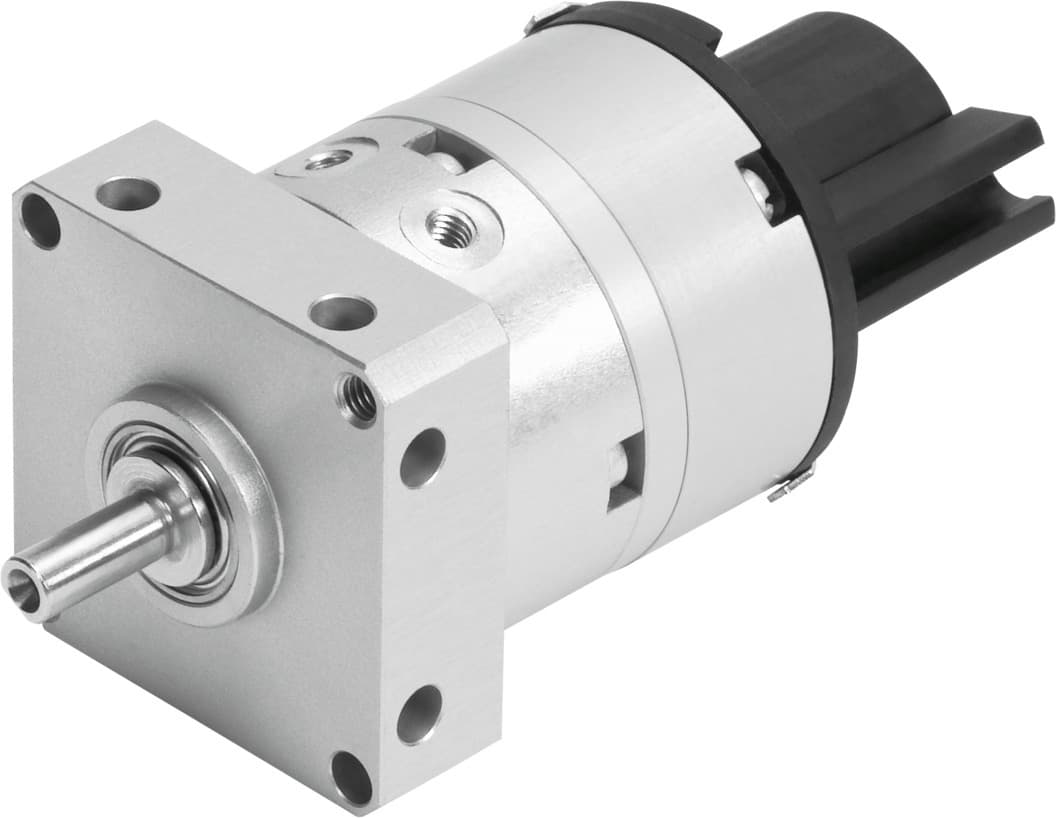

dsm-6-180-p-a-ff
Selling Points
- 1The Festo DSM-6-180-P-A-FF features a rotation angle adjustment range of 0 to 180 degrees and a swivel angle of 0 to 180 degrees, ensuring precise control in various applications.
- 2This semi-rotary drive operates in a double-acting mode, allowing for efficient and reliable operation in pneumatic systems.
- 3Equipped with position detection via a proximity sensor, the DSM-6-180-P-A-FF ensures accurate positioning and monitoring of the drive's operation.
- 4The drive operates within a pressure range of 3.5 to 8 bar, making it versatile for various pneumatic system requirements.
- 5While lubricated operation is not required initially, it becomes necessary for continued operation, ensuring smooth and efficient performance over time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Cushioning angle | 0deg |
Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
Mounting position | Any | Precision adjustment | -5deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | For proximity sensor | Symbol | 00991265 |
Operating pressure | 3.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.15Nm | Permissible mass moment of inertia | 6.5E-4kgm2 |
Product weight | 85g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 175830 |
Specifications may be subject to change without notice
