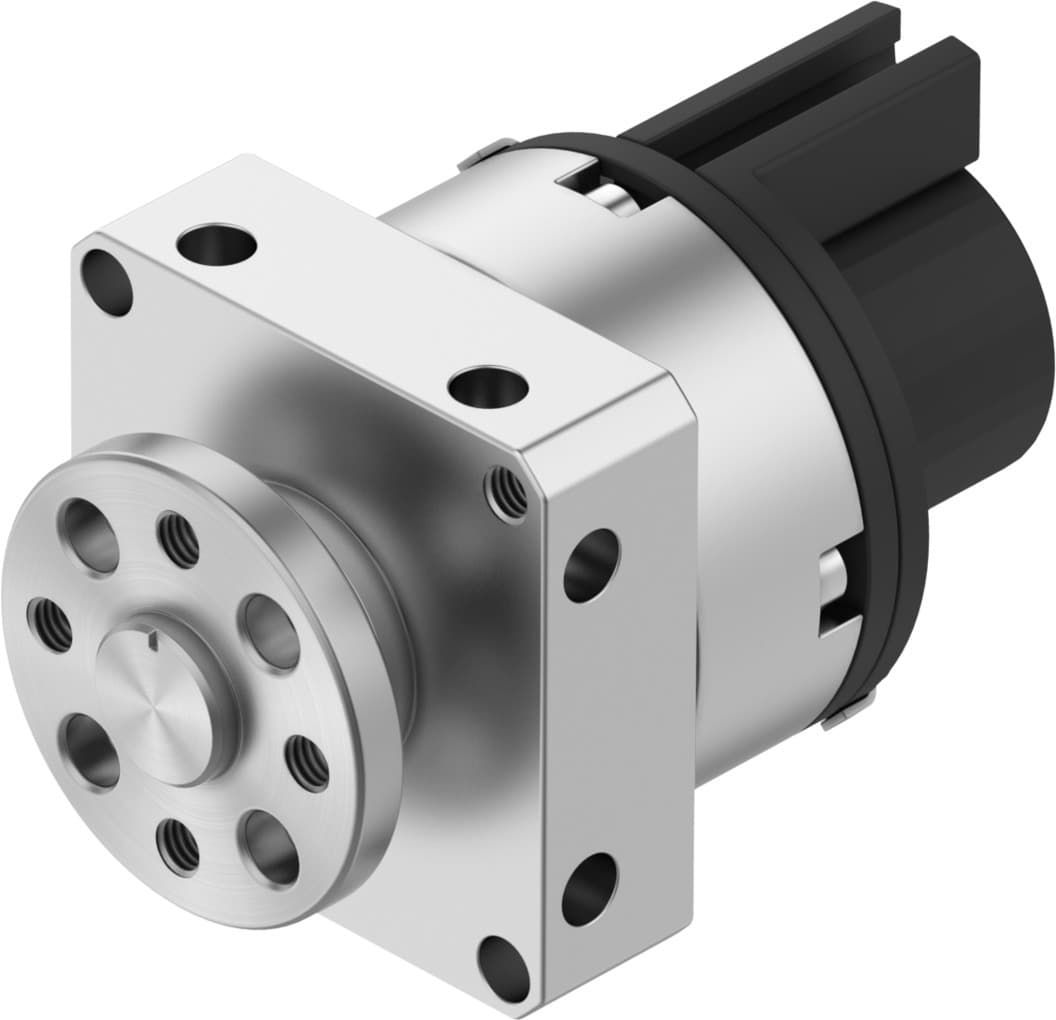

Festo DSM-6-180-P-A-FW Semi-Rotary Drive | High-Quality Pneumatic Actuator

Selling Points

1The Festo DSM-6-180-P-A-FW semi-rotary drive offers a wide swivel angle of 0 to 180 degrees, providing flexibility in various applications.
2This pneumatic actuator features double-acting operation, ensuring smooth and reliable motion control with both forward and reverse movements.
3Equipped with flexible cushioning rings/plates at both ends, the DSM-6-180-P-A-FW provides enhanced cushioning and reduces wear and tear on the drive.
4The drive operates within a pressure range of 3.5 to 8 bar, making it suitable for various industrial applications requiring different operating pressures.
5Designed for use with compressed air to ISO 8573-1:2010 [7:4:4], this actuator ensures reliable operation in environments where air quality is a concern.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	6	Cushioning angle	0.5deg
Swivel angle	0deg 180deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	3.5bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.15Nm	Permissible mass moment of inertia	6.5E-4kgm2
Product weight	56g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185931

Specifications may be subject to change without notice
