Product Model
dsm-6-180-p-ff
Selling Points

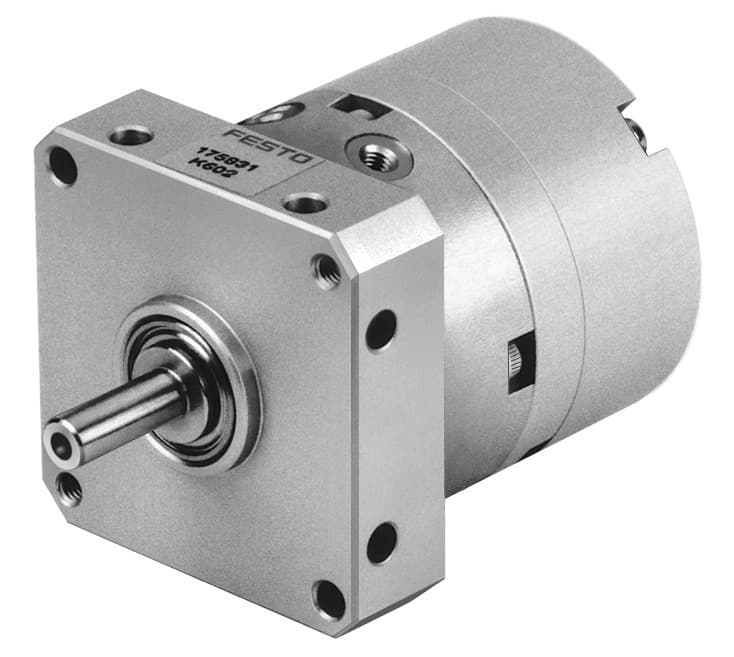

- 1The Festo DSM-6-180-P-FF semi-rotary drive features an adjustable swivel angle of 0 to 180 degrees, providing flexibility in various industrial applications.
- 2This semi-rotary drive operates with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance and high-quality air supply.
- 3The DSM-6-180-P-FF is designed with elastic cushioning rings/plates at both ends, enhancing its durability and reducing wear and tear during operation.
- 4With a maximum swivel frequency of 3 Hz at 6 bar, this drive offers efficient and precise control in dynamic applications.
- 5The Festo DSM-6-180-P-FF is constructed from high-alloy stainless steel for the drive shaft and TPE-U(PU) seals, ensuring long-lasting performance and minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Cushioning angle | 0deg |
Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
Mounting position | Any | Precision adjustment | -5deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | None | Symbol | 00991265 |
Operating pressure | 3.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.15Nm | Permissible mass moment of inertia | 6.5E-4kgm2 |
Product weight | 70g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 175827 |
Specifications may be subject to change without notice
