Product Model

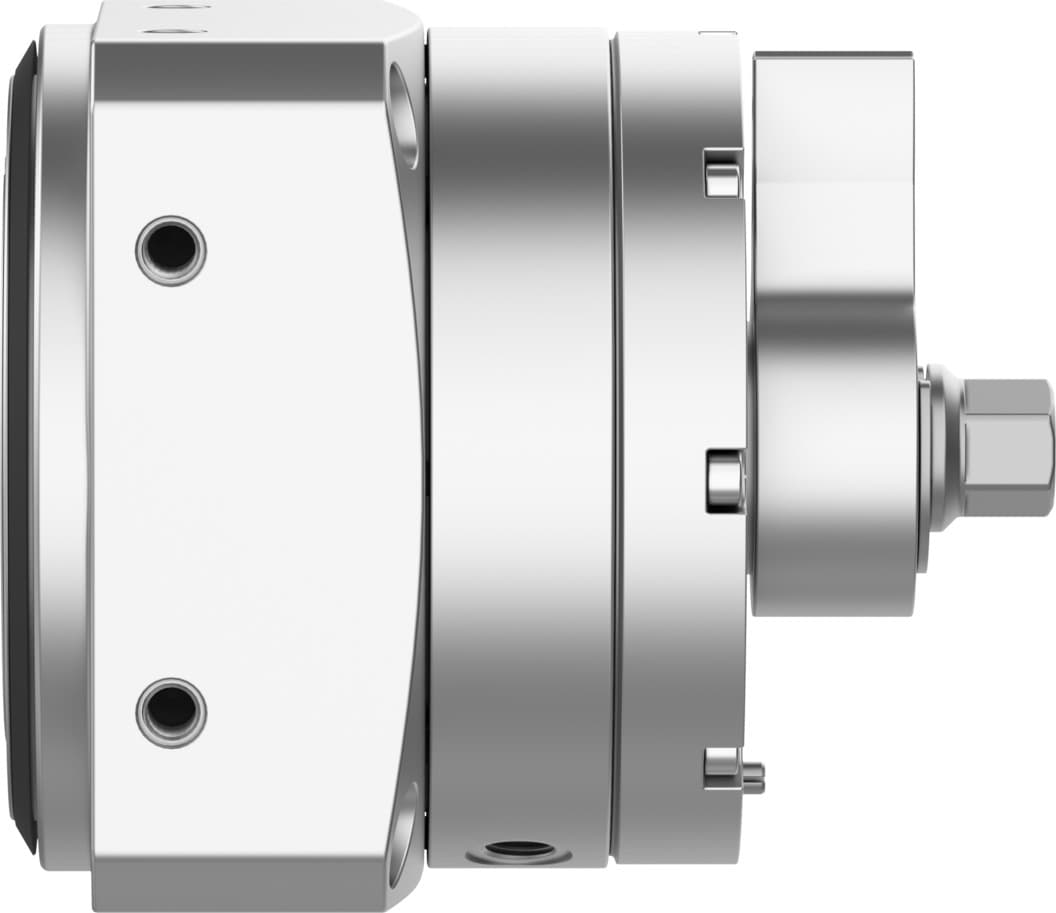

dsm-63-270-hd-a-b
Selling Points
- 1The DSM-63-270-HD-A-B offers adjustable cushioning and a swivel angle range of 0 to 240 degrees, ensuring precise and flexible operation in various industrial settings.
- 2This semi-rotary drive operates double-acting, allowing for both forward and reverse motion, which enhances its versatility and efficiency in industrial automation applications.
- 3With an operating pressure range of 2 to 10 bar, the DSM-63-270-HD-A-B can handle a wide variety of industrial conditions, making it a reliable choice for various pneumatic systems.
- 4The drive includes position detection via a proximity switch, ensuring accurate positioning and control in complex automation tasks.
- 5Constructed from high-quality materials like steel and wrought aluminum alloy, the DSM-63-270-HD-A-B offers excellent corrosion resistance and durability, ensuring long-term performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 1300N |
Max. radial force | 1600N | Theoretical torque at 6 bar | 40Nm |
Product weight | 5730g | Type of mounting | With internal thread |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1369115 |
Specifications may be subject to change without notice
