Product Model

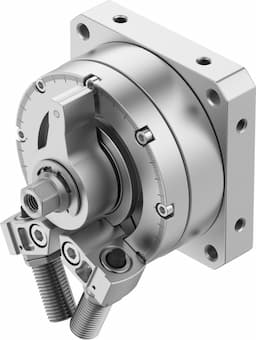

dsm-63-270-p1-fw-a-b
Selling Points
- 1Adjustable Swivel Angle: 0 to 240 degrees for versatile positioning.
- 2Elastic Cushioning: Reduces shock and vibration with elastic silencer rings/plates.
- 3Robust Construction: Nickel-plated steel drive shaft and aluminum alloy housing for durability.
- 4High Precision: Double-acting operation with metal fixed stops for accurate control.
- 5Compressed Air Compatible: Operates with compressed air to ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Cushioning angle | 6deg |
Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
Cushioning | Elastic cushioning rings/pads at both ends with fixed stop | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 1.5bar 10bar |
Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 500N |
Max. radial force | 500N | Theoretical torque at 6 bar | 40Nm |
Permissible mass moment of inertia | 0.45kgm2 | Product weight | 5340g |
Type of mounting | With internal thread | Pneumatic connection | G1/4 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 566214 |
Specifications may be subject to change without notice
