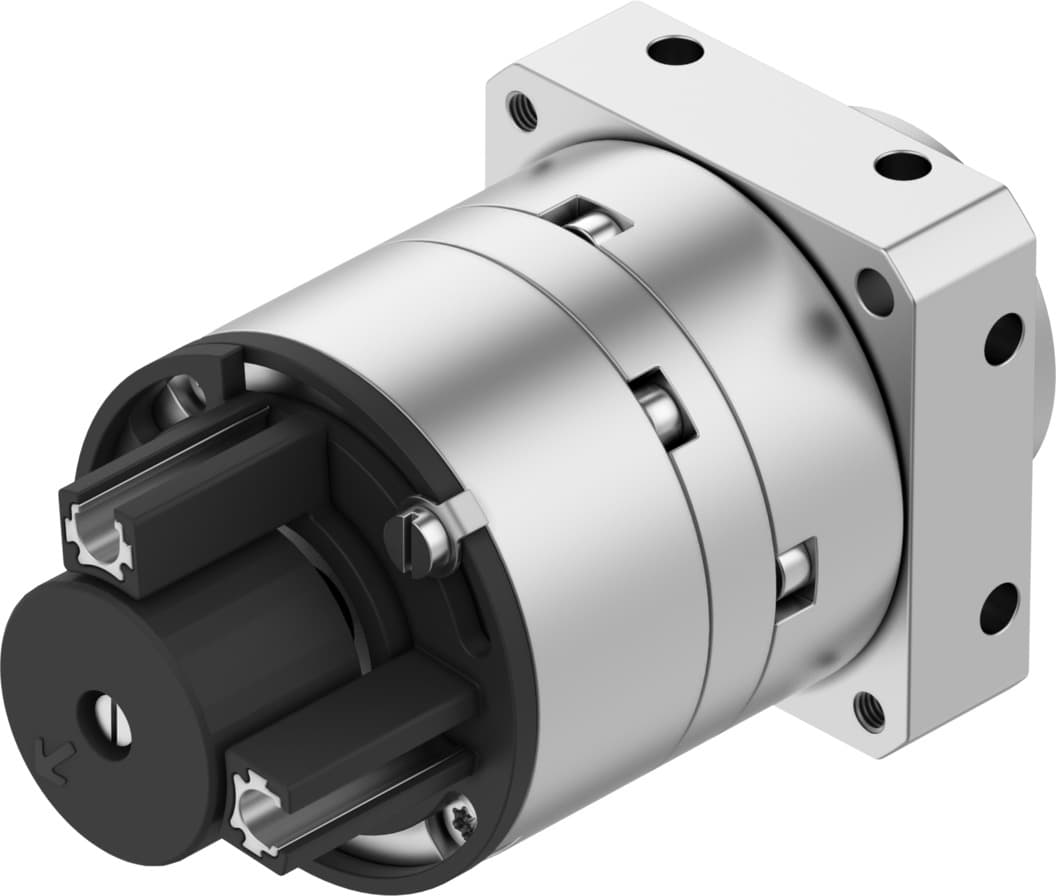

Festo DSM-8-180-P-A-FF-FW: High-Quality Rotary Actuator for Industrial Automation

Selling Points

1Precision Swivel Angle Adjustment - The DSM-8-180-P-A-FF-FW offers a swivel angle adjustment range of 0 to 180 degrees, providing precise control over your industrial automation systems.
2Double-Acting Operation - This rotary actuator operates double-acting, ensuring reliable and efficient performance in a variety of industrial applications.
3Robust Construction - Built with high-alloy stainless steel drive shafts and TPE-U(PU) seals, the DSM-8-180-P-A-FF-FW is designed for durability and longevity.
4Compressed Air Compatibility - Operating with compressed air as per ISO 8573-1:2010 [7:4:4], this actuator is suitable for a wide range of pneumatic systems.
5Versatile Mounting Options - Available with an internal thread and M3 pneumatic connection, the DSM-8-180-P-A-FF-FW offers flexible mounting options to fit various industrial setups.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	8	Cushioning angle	0deg
Adjustment range of swivel angle	0deg 180deg	Swivel angle	0deg 180deg
Mounting position	Any	Precision adjustment	-5deg
Mode of operation	Double-acting	Structural design	Rotary vane
Position sensing	For proximity sensor	Symbol	00991265
Operating pressure	3.5bar 8bar	Max. swivel frequency at 6?bar	3Hz
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Ambient temperature	0°C 60°C
Theoretical torque at 6 bar	0.35Nm	Permissible mass moment of inertia	0.0013kgm2
Product weight	162g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Drive shaft material	High-alloy stainless steel	Seals material	TPE-U(PU)
Housing material	Aluminum Anodized	Manufacturer ID	185939

Specifications may be subject to change without notice
