Product Model
dsm-8-180-p-ff-fw
Selling Points

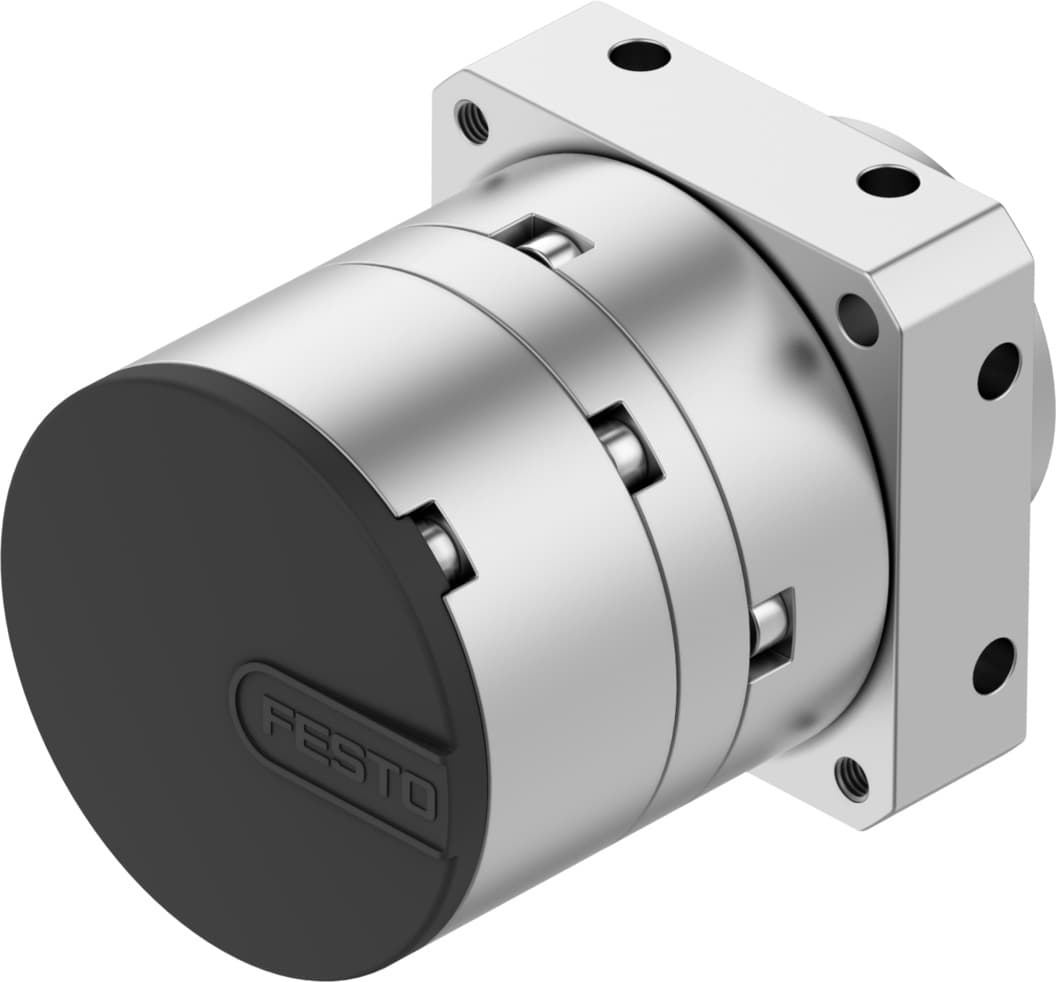

- 1The Festo DSM-8-180-P-FF-FW features a 180-degree swivel angle, providing versatile positioning options for your industrial automation needs.
- 2This semi-rotary drive is designed for double-acting operation, ensuring reliable and efficient performance in various applications.
- 3With a cushioning angle of 0 degrees, the DSM-8-180-P-FF-FW ensures smooth and precise movement, reducing wear and tear on components.
- 4The drive operates within a pressure range of 3.5 to 8 bar, making it compatible with a variety of compressed air systems.
- 5Constructed from high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, this actuator offers durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Cushioning angle | 0deg |
Adjustment range of swivel angle | 0deg 180deg | Swivel angle | 0deg 180deg |
Mounting position | Any | Precision adjustment | -5deg |
Mode of operation | Double-acting | Structural design | Rotary vane |
Position sensing | None | Symbol | 00991265 |
Operating pressure | 3.5bar 8bar | Max. swivel frequency at 6?bar | 3Hz |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.35Nm | Permissible mass moment of inertia | 0.0013kgm2 |
Product weight | 147g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 185938 |
Specifications may be subject to change without notice
