Product Model

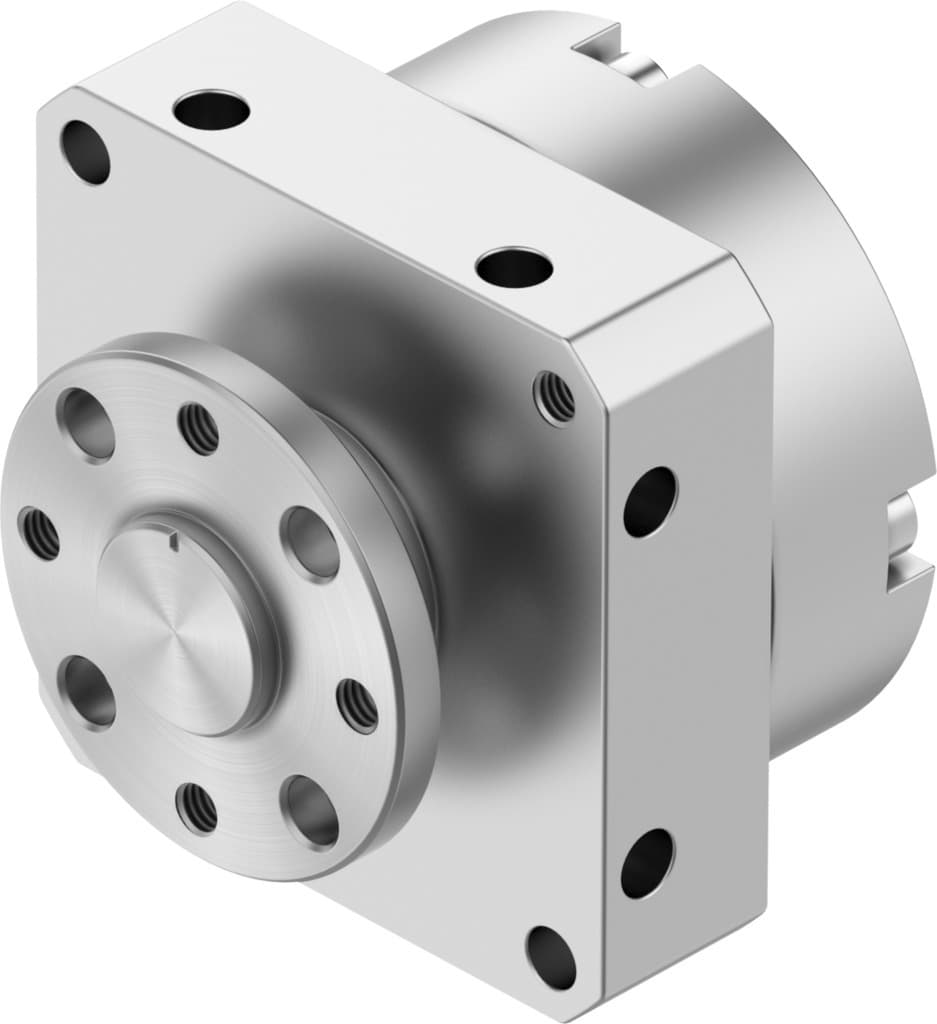

dsm-8-180-p-fw
Selling Points
- 1The Festo DSM-8-180-P-FW offers a rotation angle adjustment range of 0 to 180 degrees, ensuring precise control in various applications.
- 2This rotary actuator can be mounted via a female thread, providing flexibility in installation and integration.
- 3Designed to operate at pressures between 3.5 and 8 bar, the DSM-8-180-P-FW is suitable for demanding industrial environments.
- 4Built with high-alloy stainless steel for the drive shaft and TPE-U(PU) seals, this actuator ensures durability and reliability.
- 5The DSM-8-180-P-FW meets LABS (PWIS) conformity and VDMA24364-B1/B2-L standards, ensuring compliance with industry safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Cushioning angle | 0.5deg |
Swivel angle | 0deg 180deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | None |
Symbol | 00991265 | Operating pressure | 3.5bar 8bar |
Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
Theoretical torque at 6 bar | 0.35Nm | Permissible mass moment of inertia | 0.0013kgm2 |
Product weight | 85g | Type of mounting | With internal thread |
Pneumatic connection | M3 | Note on materials | RoHS-compliant |
Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
Housing material | Aluminum Anodized | Manufacturer ID | 185935 |
Specifications may be subject to change without notice
