Product Model

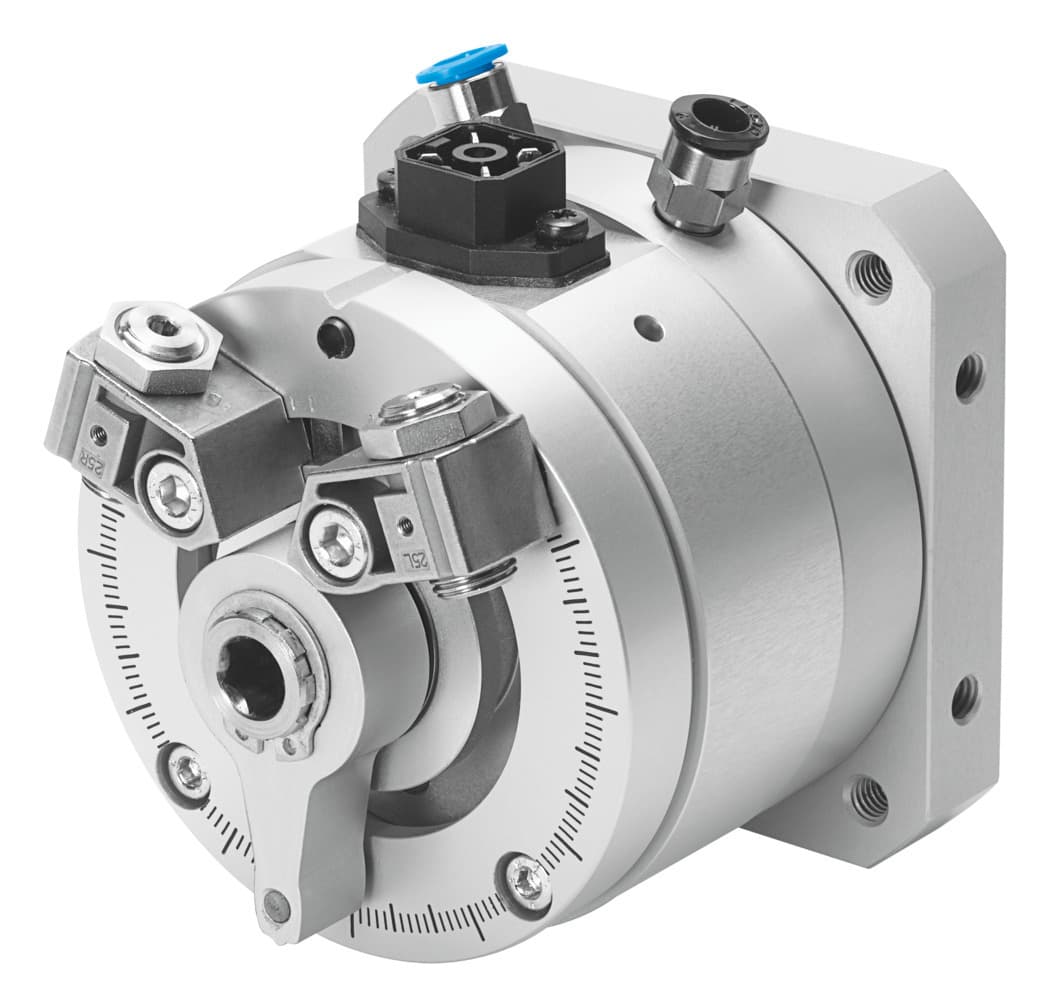

dsmi-40-270-a-b
Selling Points
- 1Compact design with 40mm piston diameter.
- 2Adjustable swivel angle from 0 to 272°.
- 3Integrated displacement encoder for precise positioning.
- 4Double-acting rotary vane actuator with metal stops.
- 5Compressed air operating medium with IP65 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Adjustment range of swivel angle | 0deg 270deg | Stroke reduction in the end positions | 5 ° |
Shortest positioning stroke | 5° when positioning 15° for Soft Stop | Piston diameter | 40 mm |
Swivel angle | 0deg 272deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position, positioning | Any | Mounting position, Soft Stop | Horizontal |
Measuring principle of linear potentiometer | Analog | Structural design | Drive shaft on ball bearings Rotary vane |
Position sensing | For proximity sensor With integrated angle measurement system | Operating pressure | 0.2MPa 1MPa |
Operating pressure for positioning/soft stop | 4bar 8bar | Max. swivel frequency at 6?bar | 2Hz |
Max. travel speed | 2000deg/s | Min. travel speed | 50deg/s |
Typical positioning time, short-stroke, horizontal | 0.25/0.25 s | Typical positioning time, long stroke, horizontal | 0.30/0.55 s |
Connection resistance | 5kOhm | Recommended contact current | 1μA |
Mode of operation | Double-acting | Max. operating voltage DC | 42V |
Max. short-time slider current | 10000μA | Max. current consumption | 4mA |
Nominal operating voltage DC | 10V | Connection resistance tolerance | 20% |
Permissible voltage fluctuations | < 1 % | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Degree of protection | IP65 as per IEC 60529 | Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 2 |
Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.1J |
Max. axial force | 120N | Max. mass moment of inertia, horizontal | 0.12kgm2 |
Max. mass moment of inertia, vertical | 0.12kgm2 | Max. radial force | 350N |
Min. mass moment of inertia, horizontal | 0.006kgm2 | Min. mass moment of inertia, vertical | 0.006kgm2 |
Theoretical torque at 6 bar | 20Nm | Product weight | 3950g |
Angular resolution | 0.1deg | Output signal | Analog |
Independent linearity | 0.0025 | Positioning repetition accuracy | +/- 0.3 deg |
Soft Stop end position repetition accuracy | < 0.2 deg | Repetition accuracy, Soft Stop intermediate position | +/- 2 deg |
Linear potentiometer electrical connection | 4-pin | Cable length | 30m |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Material of measuring system housing | Wrought aluminum alloy Anodized | Stop lever material | Wrought aluminum alloy Anodized |
Drive shaft material | Steel, nickel-plated | (Fixed) stop material | Steel |
Housing material | Wrought aluminum alloy Anodized | Measuring system coupling material | TPE-U(PU) |
Feather key material | Steel | Vane material | PET-reinforced |
Material of plug housing | PA-reinforced | Material of cylinder barrel | Wrought aluminum alloy |
Manufacturer ID | 561691 |
Specifications may be subject to change without notice
