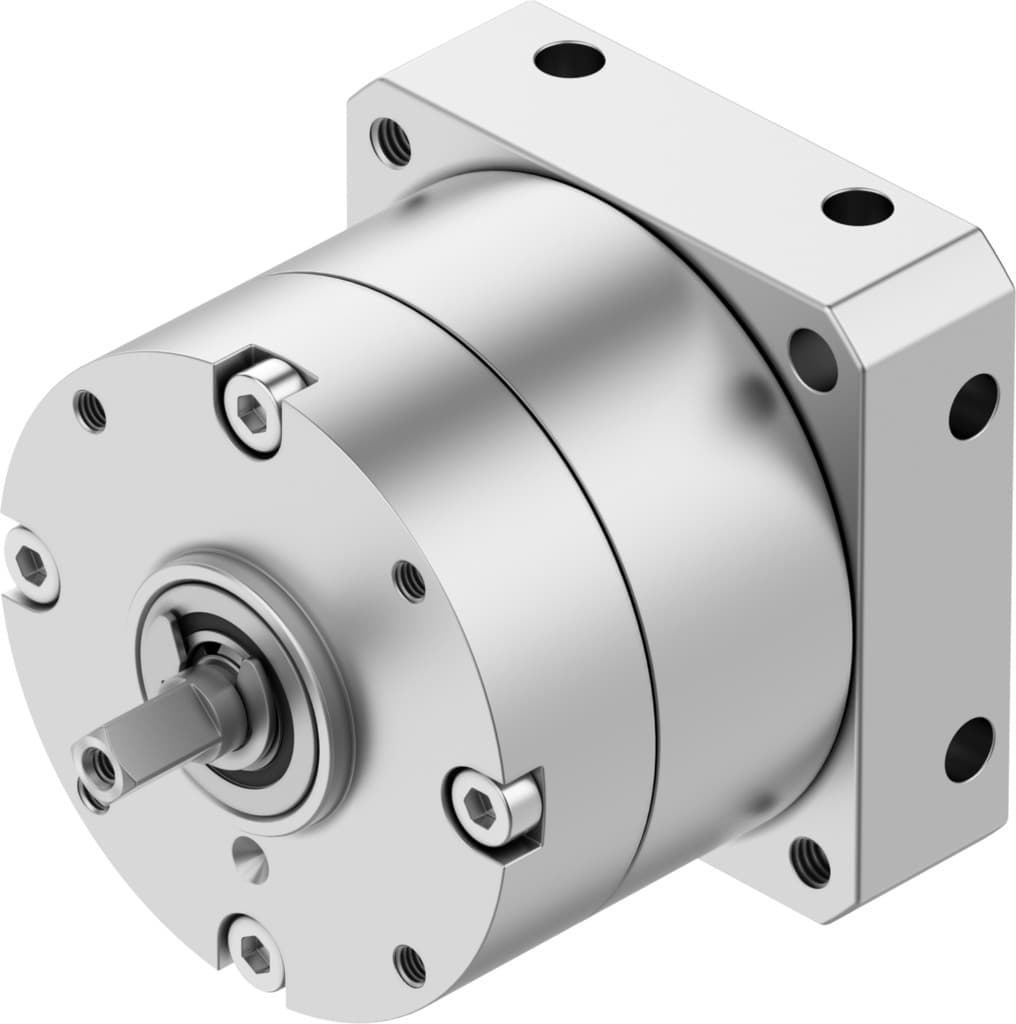

Festo DSM-T-10-240-P Semi-Rotary Drive | High-Quality Automation

Selling Points

1High Precision Swivel Angle: The Festo DSM-T-10-240-P offers a 240° adjustable swivel angle, ensuring precise positioning in various industrial applications.
2Robust Construction: Built with high-alloy stainless steel drive shafts and TPE-U(PU) seals, this semi-rotary drive provides durability and reliability.
3Efficient Operation: Designed for double-acting mode, the DSM-T-10-240-P operates efficiently with compressed air to ISO 8573-1:2010 [7:4:4], ensuring optimal performance.
4Versatile Mounting Options: Available with a flanged shaft (FW) and spigot shaft (P), the drive can be mounted via female thread, offering flexibility in installation.
5Compliant with Industry Standards: The DSM-T-10-240-P meets VDMA24364-B1/B2-L LABS (PWIS) conformity, ensuring compliance with industry standards for quality and safety.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	10	Cushioning angle	0.5deg
Swivel angle	0deg 240deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	None
Symbol	00991265	Operating pressure	3.5bar 8bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Theoretical torque at 6 bar	1.7Nm
Permissible mass moment of inertia	0.0026kgm2	Product weight	200g
Type of mounting	With internal thread	Pneumatic connection	M3
Note on materials	RoHS-compliant	Drive shaft material	High-alloy stainless steel
Seals material	TPE-U(PU)	Housing material	Aluminum Anodized
Manufacturer ID	1562093

Specifications may be subject to change without notice
