Product Model

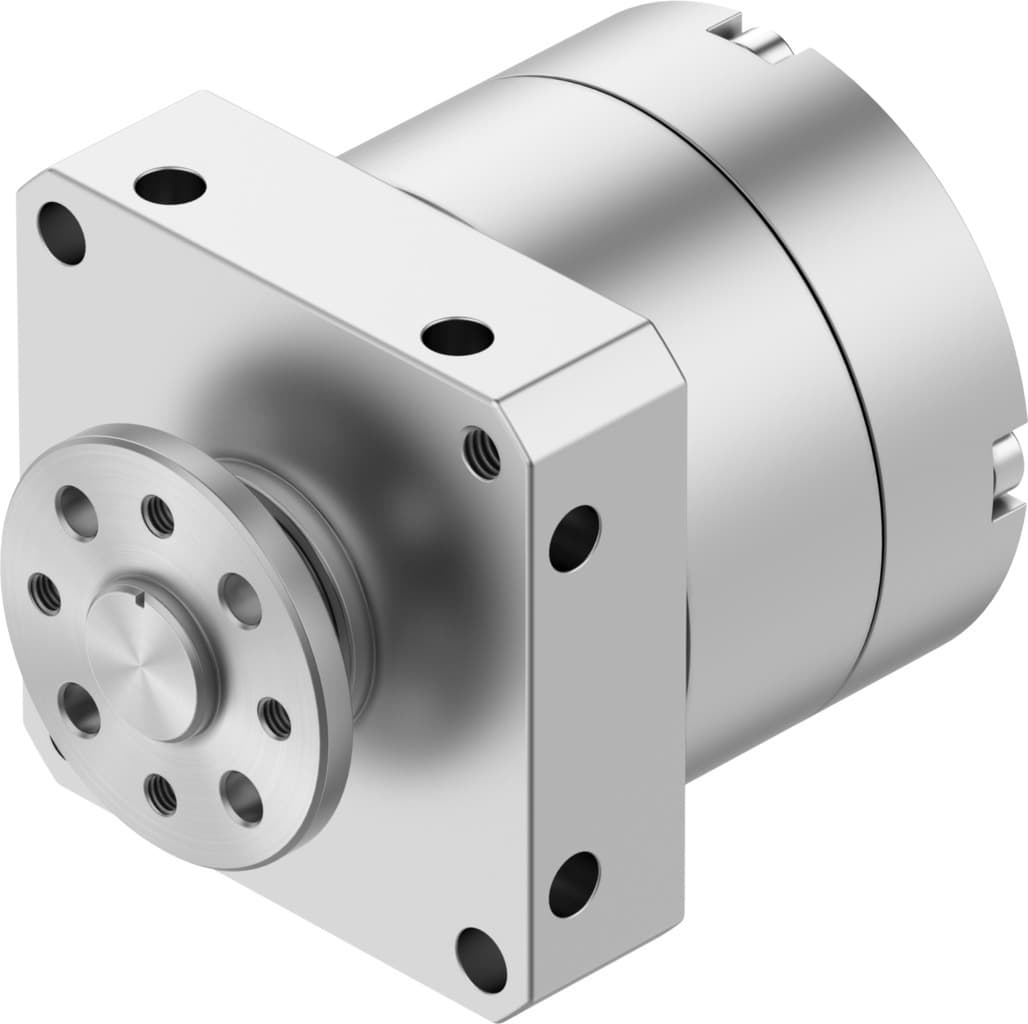

dsm-t-10-240-p-fw
Selling Points
- 1The Festo DSM-10-240-P-FW features a 240° adjustable swivel angle, allowing for precise positioning in various applications.
- 2This semi-rotary drive operates in double-acting mode, ensuring reliable and efficient operation in industrial settings.
- 3With a theoretical torque of 0.85 Nm at 6 bar, the DSM-10-240-P-FW delivers robust performance for demanding tasks.
- 4The drive operates with compressed air to ISO 8573-1:2010 [7:4:4], ensuring compatibility with international standards.
- 5Made from high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, this actuator offers long-lasting durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 10 | Cushioning angle | 0.5deg |
Swivel angle | 0deg 240deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | None |
Symbol | 00991265 | Operating pressure | 3.5bar 8bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 1.7Nm |
Permissible mass moment of inertia | 0.0026kgm2 | Product weight | 210g |
Type of mounting | With internal thread | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
Manufacturer ID | 1562318 |
Specifications may be subject to change without notice
