Product Model

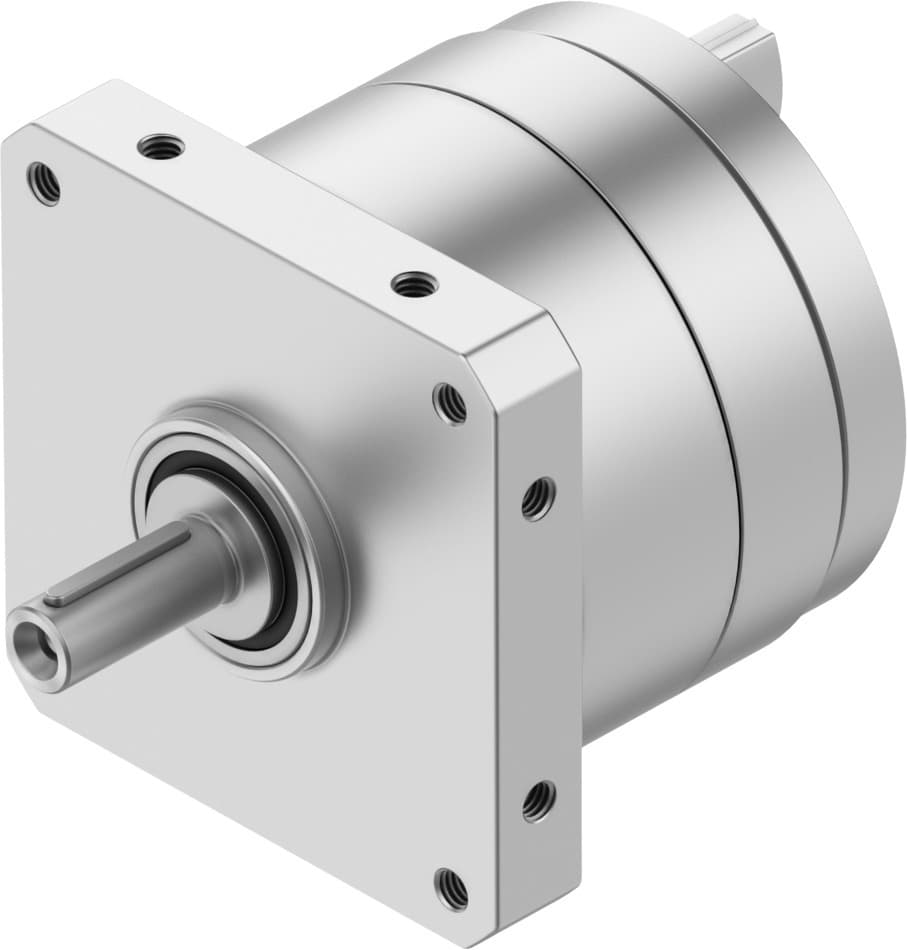

dsm-t-12-270-a-b
Selling Points
- 1The Festo DSM-T-12-270-A-B semi-rotary drive offers a cushioning angle of 15 degrees, ensuring smooth operation and minimizing shock impacts.
- 2This drive features a rotation angle adjustment range of 0 to 246 degrees and a swivel angle of 0 to 246 degrees, providing extensive flexibility in application settings.
- 3Equipped with shock absorbers at both ends, the DSM-T-12-270-A-B ensures stable operation and reduces wear and tear on the drive.
- 4The drive operates via a double-acting mechanism with position detection via proximity switch, ensuring precise control and reliable operation.
- 5Designed for use with compressed air to ISO 8573-1:2010 standards, this drive is suitable for a wide range of industrial applications requiring high precision and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 18N |
Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
Product weight | 330g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145122 |
Specifications may be subject to change without notice
