Product Model
dsm-t-12-270-fw-a-b
Selling Points

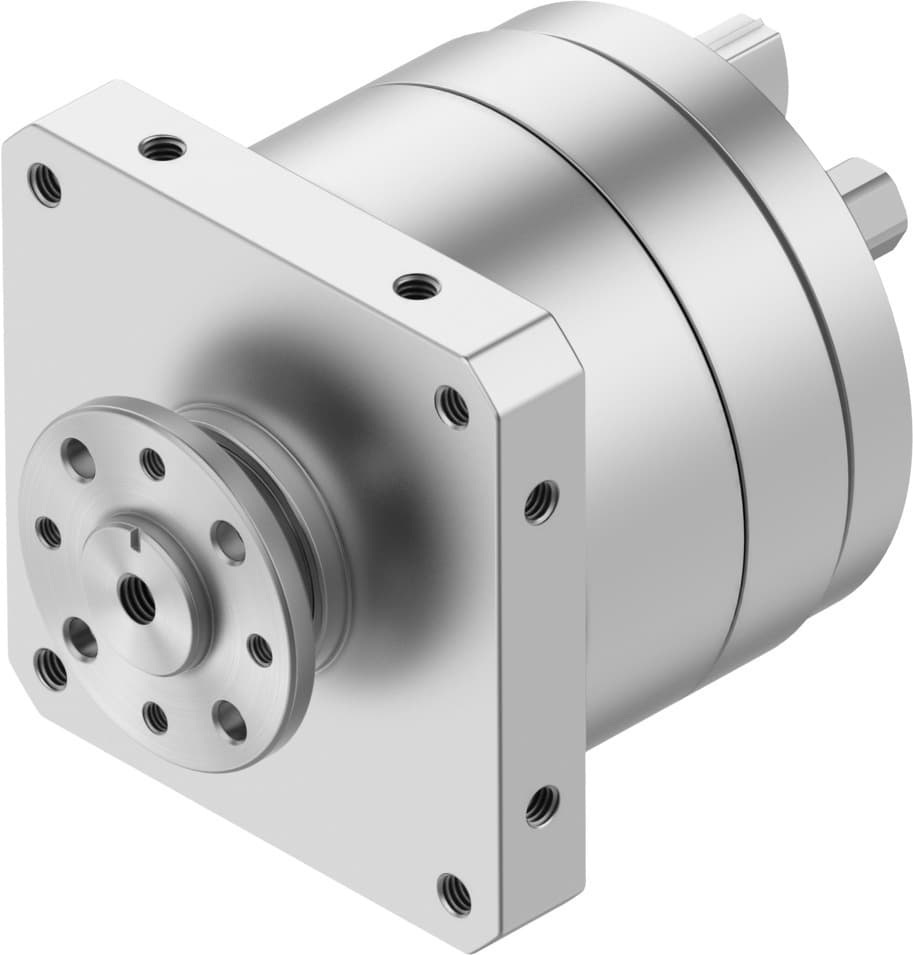

- 1The Festo DSM-T-12-270-P-FW-A-B semi-rotary drive features a 12mm size with a 270° swivel angle, providing versatile motion control in various industrial applications.
- 2This semi-rotary drive includes elastic cushioning rings/plates at both ends, ensuring smooth operation and reducing wear and tear on the actuator.
- 3With optional position sensing via proximity switch, the DSM-T-12-270-P-FW-A-B offers precise control and monitoring of its rotational position.
- 4The drive operates within a range of 0.25MPa to 1MPa operating pressure and supports compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in various environments.
- 5Designed with a double-acting mode of operation and a vane design, the DSM-T-12-270-P-FW-A-B provides efficient and reliable motion control in both directions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 18N |
Max. radial force | 45N | Theoretical torque at 6 bar | 2.5Nm |
Product weight | 350g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145128 |
Specifications may be subject to change without notice
