Product Model

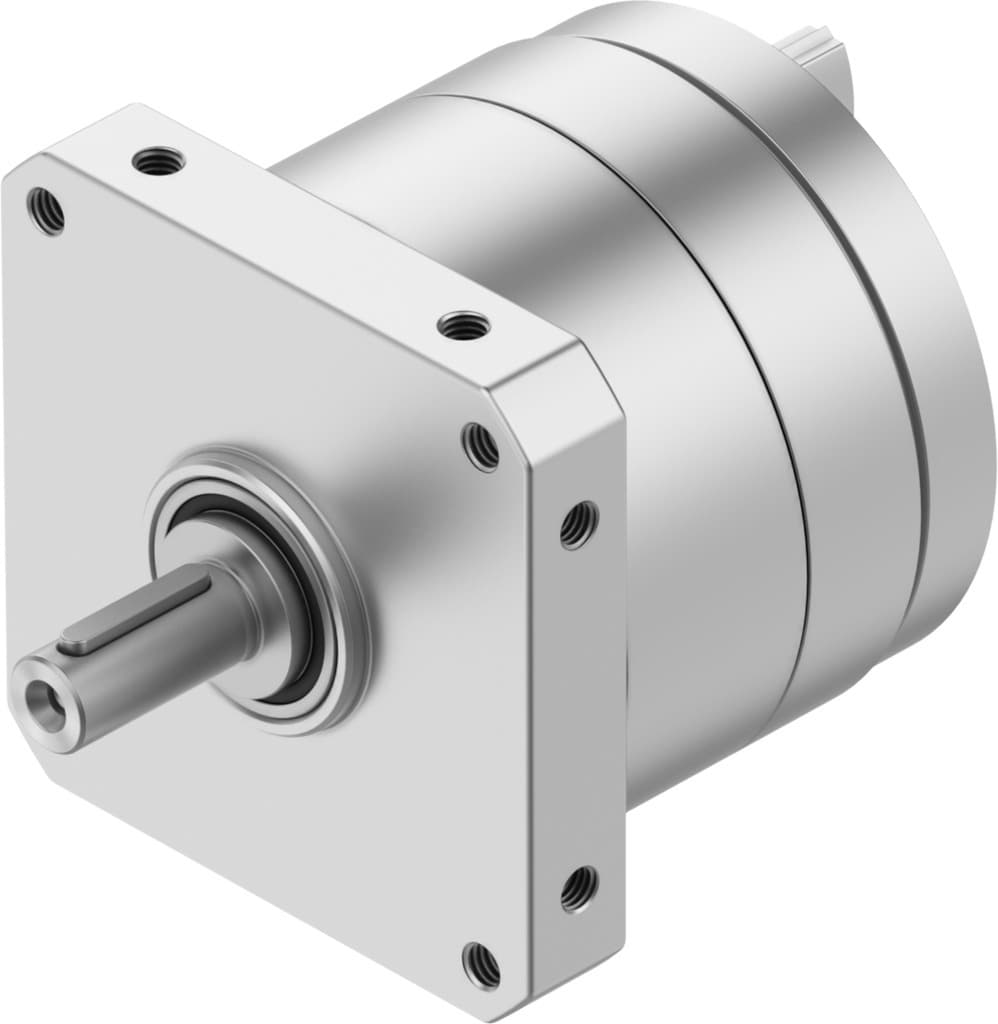

dsm-t-16-270-a-b
Selling Points
- 1The DSM-T-16-270-A-B features a swivel angle of 0 to 270 degrees, providing flexibility in various industrial applications.
- 2This semi-rotary drive operates double-acting, allowing for efficient and precise control in both directions.
- 3Equipped with a proximity switch for position detection, ensuring accurate and reliable operation.
- 4Constructed with a vane design and nickel-plated steel drive shaft, offering high corrosion resistance and durability.
- 5Available with optional mounting positions, making it easy to integrate into different systems and environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 30N |
Max. radial force | 75N | Theoretical torque at 6 bar | 5Nm |
Product weight | 590g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145123 |
