dsm-t-16-270-cc-a-b

Selling Points

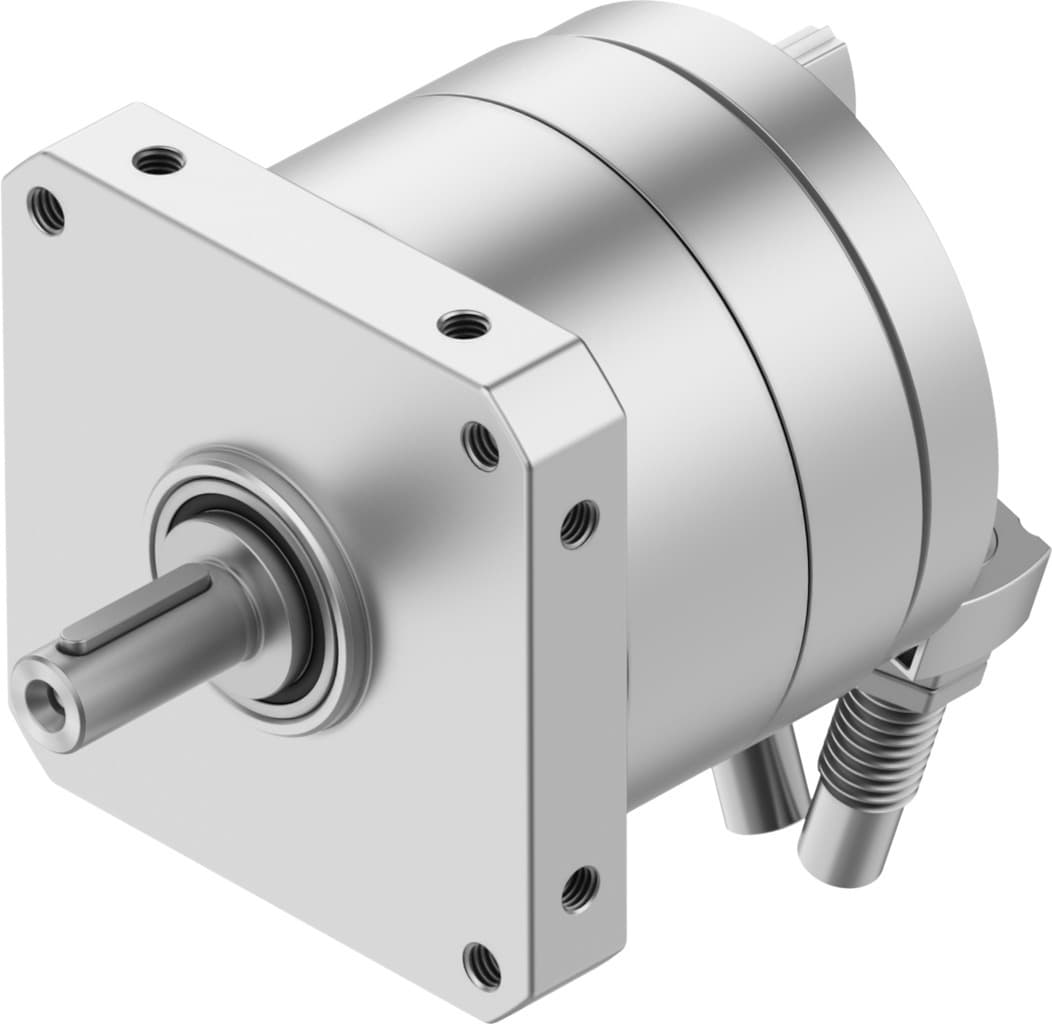

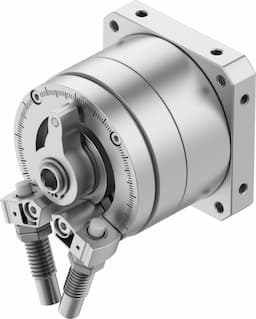

• 1The Festo DSM-T-16-270-CC-A-B semi-rotary drive offers a cushioning angle of 12 degrees, ensuring smooth operation and reducing shock impacts. Its adjustable rotation angle range from 0 to 246 degrees provides versatility in various applications.
• 2This semi-rotary drive features a swivel angle of 0 to 246 degrees, allowing for precise positioning and flexibility in handling tasks. The inclusion of shock absorbers at both ends enhances stability and durability.
• 3Designed for double-acting operation, the DSM-T-16-270-CC-A-B can handle both forward and reverse movements efficiently. It is suitable for applications requiring precise control and high reliability.
• 4The drive operates within a pressure range of 2.5 to 10 bar, making it compatible with various industrial compressed air systems. It supports a maximum swivel frequency of 1 Hz at 6 bar, ensuring consistent performance.
• 5The Festo DSM-T-16-270-CC-A-B is designed for use with compressed air in accordance with ISO 8573-1:2010, ensuring high-quality air supply and reliability in industrial environments. It is also equipped with position detection via a proximity sensor for precise control.
