Product Model

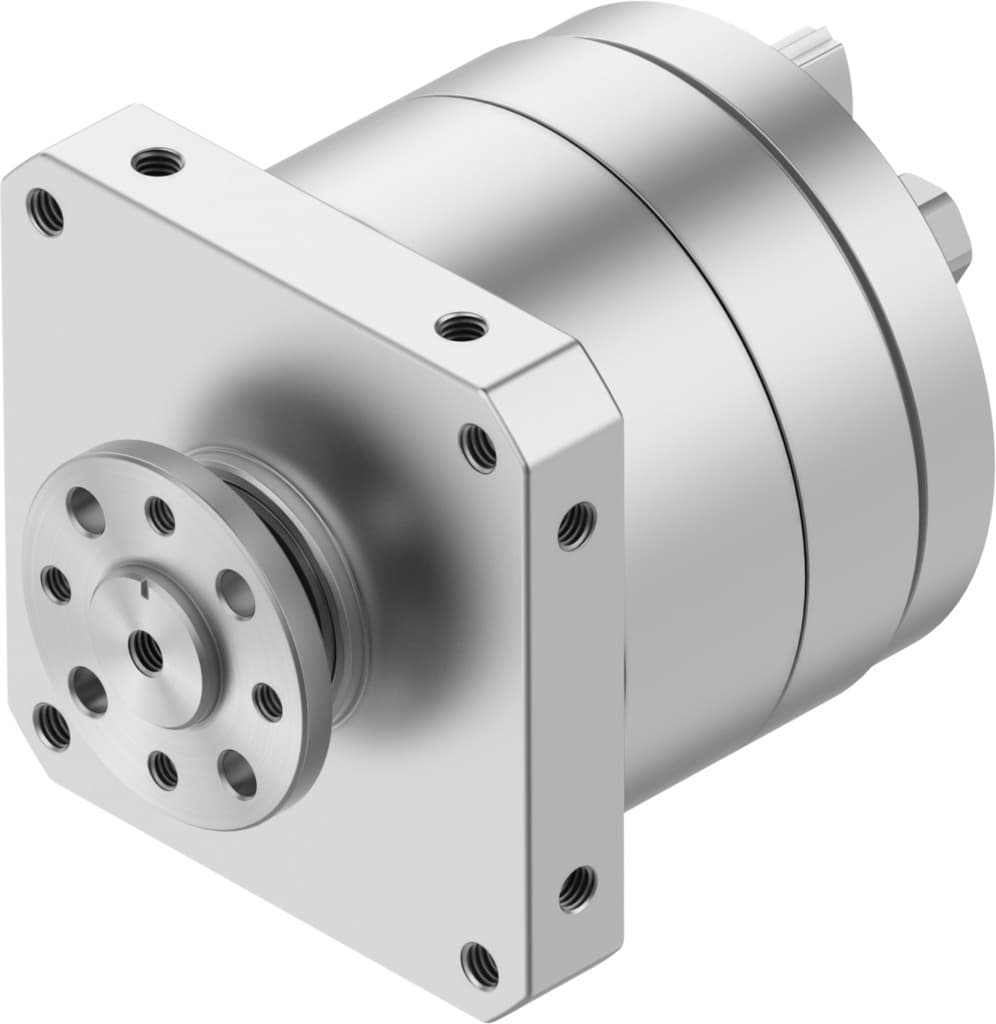

dsm-t-16-270-fw-a-b
Selling Points
- 1The Festo DSM-T-16-270-FW-A-B semi-rotary actuator offers a swivel angle of 0 to 270 degrees, providing versatile positioning in various automation applications.
- 2This actuator operates at a pressure range of 2.5 to 10 bar, ensuring reliable performance under different operating conditions.
- 3With a double-acting mode and rotary vane design, the DSM-T-16-270-FW-A-B ensures efficient and precise motion control.
- 4The actuator features position detection for proximity sensors, enhancing its integration with advanced automation systems.
- 5Designed for use with compressed air in accordance with ISO8573-1:2010, this actuator ensures high-quality performance and reliability in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 16 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2.5bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 30N |
Max. radial force | 75N | Theoretical torque at 6 bar | 5Nm |
Product weight | 630g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145129 |
Specifications may be subject to change without notice
