Product Model
dsm-t-25-270-a-b
Selling Points

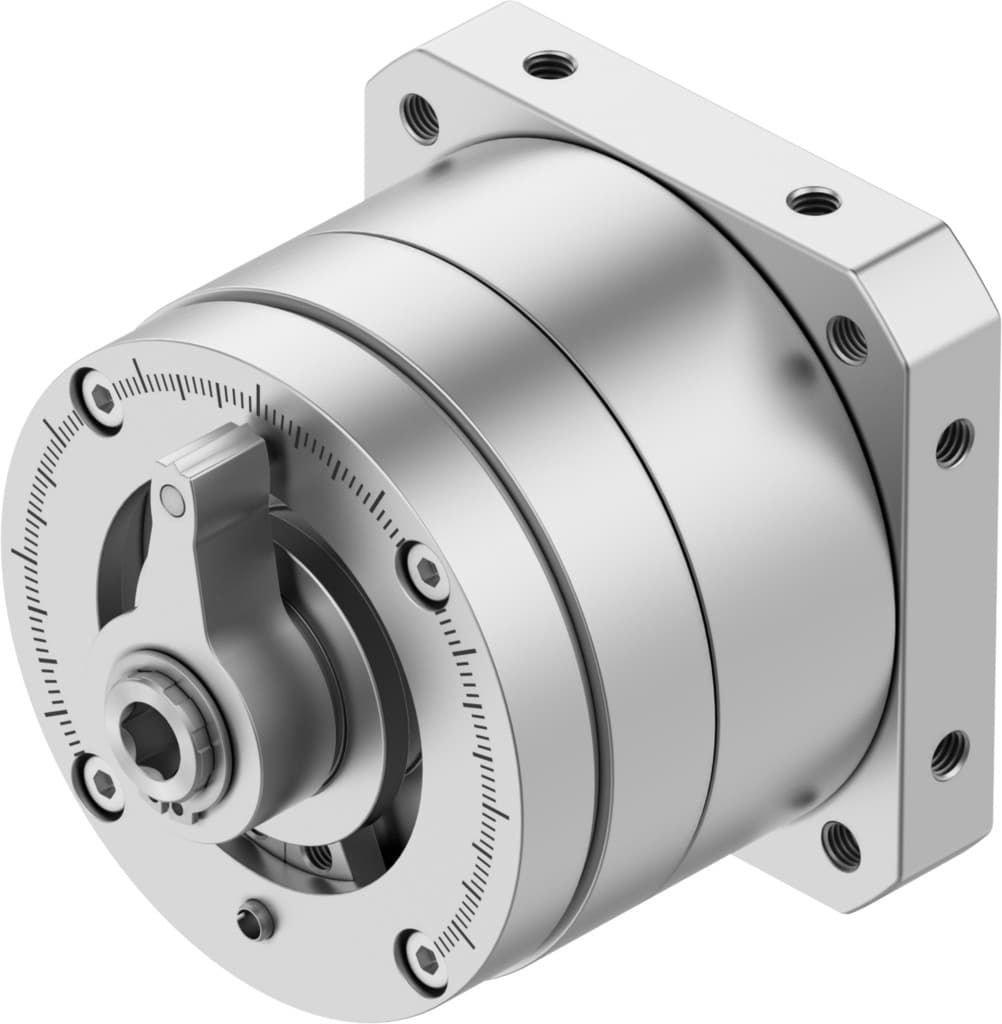

- 1The Festo DSM-T-25-270-A-B semi-rotary drive features a swivel angle of 0 to 270 degrees, providing flexibility in positioning and orientation.
- 2This drive operates double-acting, allowing for precise control and efficient movement in both directions.
- 3Equipped with position detection via proximity switch, ensuring accurate positioning and reliable operation.
- 4Constructed with a vane design and nickel-plated steel drive shaft, offering high corrosion resistance and durability.
- 5Available for mounting via female thread, making it easy to integrate into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 50N |
Max. radial force | 120N | Theoretical torque at 6 bar | 10Nm |
Product weight | 890g | Type of mounting | With internal thread |
Pneumatic connection | M5 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145124 |
