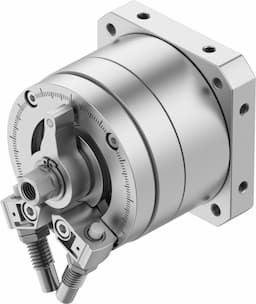

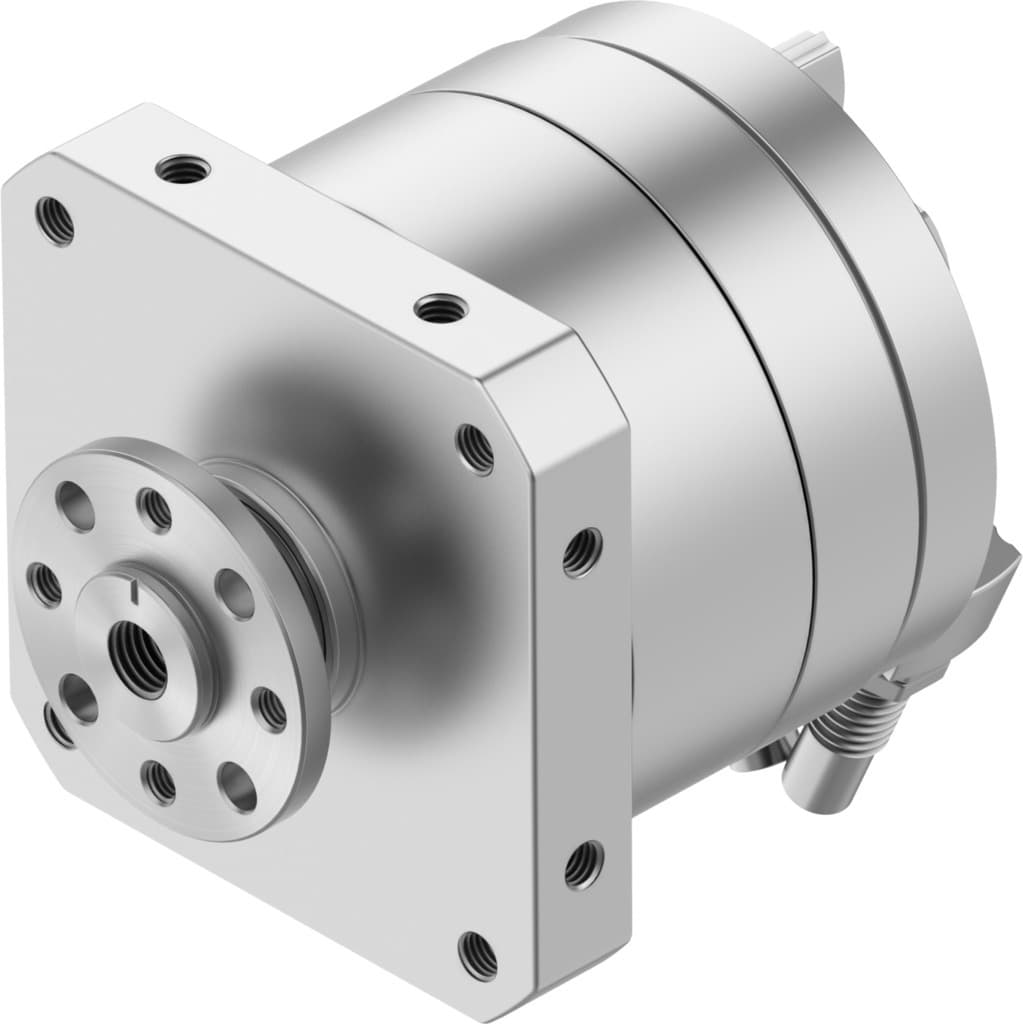

Festo DSM-T-25-270-CC-FW-A-B Rotary Actuator - High Precision Pneumatic Solution

Selling Points

1The Festo DSM-T-25-270-CC-FW-A-B rotary actuator offers a wide operating pressure range of 2 to 10 bar, ensuring flexibility in various pneumatic applications.
2This rotary actuator features an infinitely adjustable swivel angle, allowing for precise positioning and control in complex mechanical systems.
3With a maximum swivel frequency at 6 bar of 1 Hz, the DSM-T-25-270-CC-FW-A-B is ideal for applications requiring high precision and reliability.
4The actuator is designed with a shock absorber at both ends (CC cushioning), providing smooth operation and minimizing vibrations.
5The Festo DSM-T-25-270-CC-FW-A-B operates with compressed air in accordance with ISO8573-1:2010, ensuring compatibility with standard pneumatic systems.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Cushioning angle	10deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	1Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	50N
Max. radial force	120N	Theoretical torque at 6 bar	10Nm
Permissible mass moment of inertia	0.03kgm2	Product weight	1005g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1145101

Specifications may be subject to change without notice
