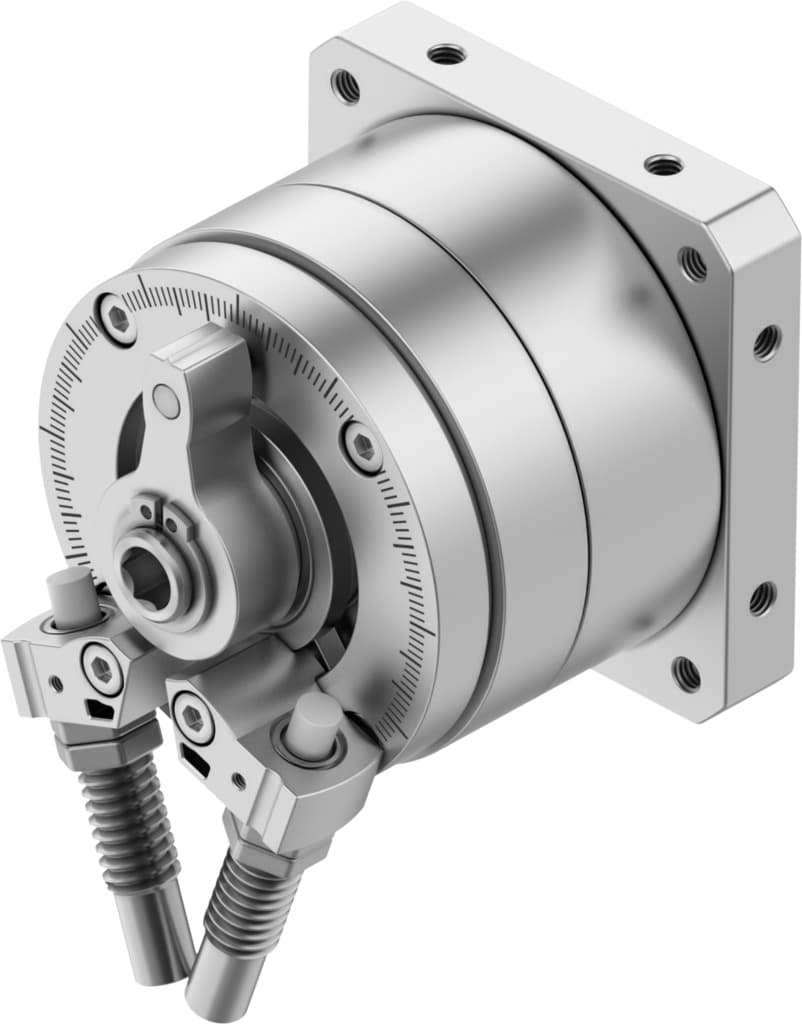

Festo DSM-T-25-270-P-A-B Semi-Rotary Drive - High-Quality Automation Solution

Selling Points

1The Festo DSM-T-25-270-P-A-B semi-rotary drive features a 270° swivel angle, providing extensive rotational flexibility for various industrial applications.
2Equipped with elastic cushioning rings/plates at both ends, this drive ensures smooth operation and minimizes wear and tear on components.
3The drive offers double-acting mode of operation and fine adjustment up to -6°, allowing for precise control and versatility in different settings.
4The Festo DSM-T-25-270-P-A-B is designed for use with compressed air to ISO 8573-1:2010, ensuring reliable operation in a variety of pneumatic systems.
5With a maximum swivel frequency of 2 Hz at 0.6 MPa (6 bar, 87 psi), this semi-rotary drive is suitable for high-performance applications requiring rapid movement.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	25	Cushioning angle	1.2deg
Adjustment range of swivel angle	0deg 270deg	Swivel angle	0deg 270deg
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Precision adjustment	-6deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	50N
Max. radial force	120N	Theoretical torque at 6 bar	10Nm
Permissible mass moment of inertia	0.015kgm2	Product weight	970g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1145098

Specifications may be subject to change without notice
