Product Model

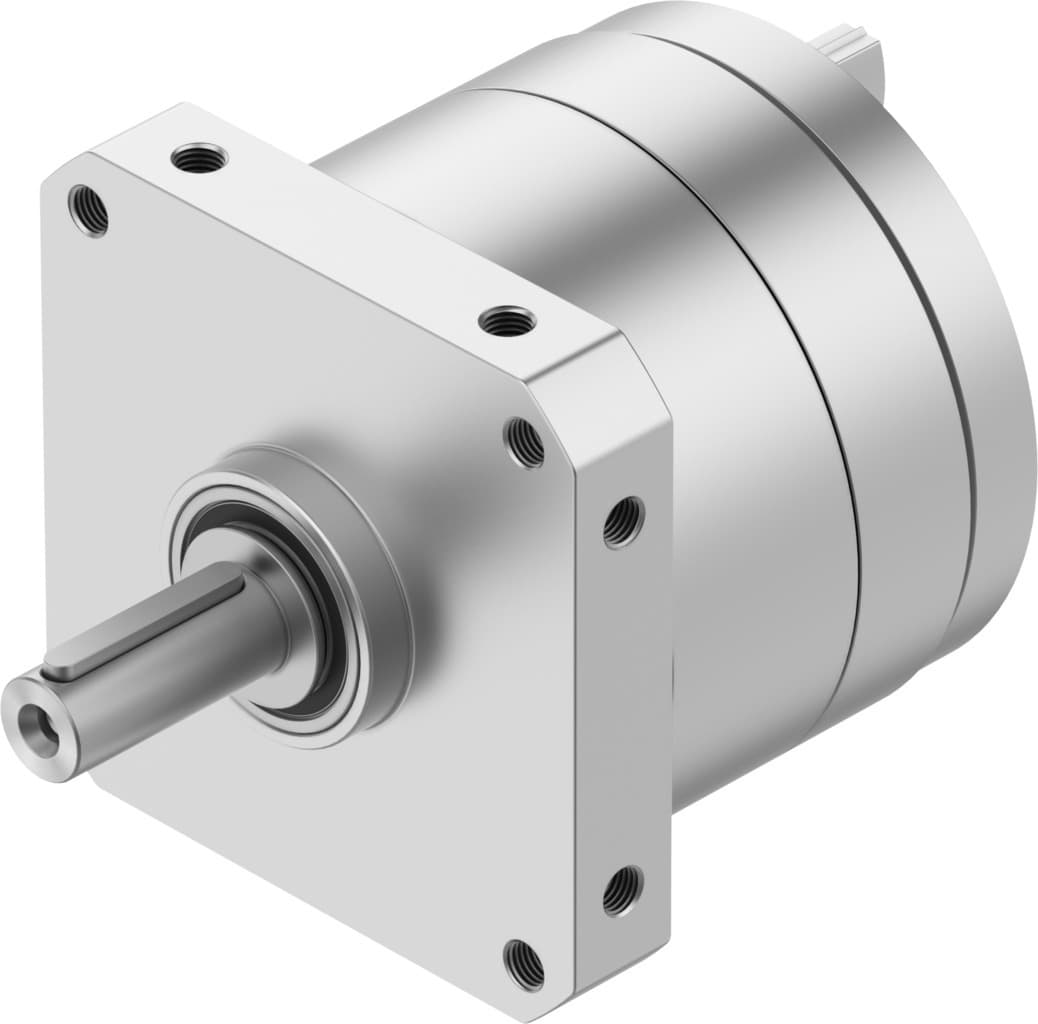

dsm-t-32-270-a-b
Selling Points
- 1The Festo DSM-T-32-270-A-B semi-rotary drive offers a cushioning angle of 12 degrees, ensuring smooth operation and reducing shock impacts.
- 2With a rotation angle adjustment range of 0-246 degrees and a swivel angle of 0-246 degrees, this drive provides versatile positioning capabilities.
- 3Equipped with shock absorbers at both ends, the DSM-T-32-270-A-B provides enhanced stability and durability in various industrial settings.
- 4Designed for use with compressed air to ISO 8573-1:2010, this drive ensures reliable operation in a wide range of pneumatic applications.
- 5The Festo DSM-T-32-270-A-B is constructed from high-quality materials, including steel, nickel-plated drive shafts, and TPE-U(PU) seals, ensuring long-lasting performance and minimal maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 75N |
Max. radial force | 200N | Theoretical torque at 6 bar | 20Nm |
Product weight | 1865g | Type of mounting | With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145125 |
Specifications may be subject to change without notice
