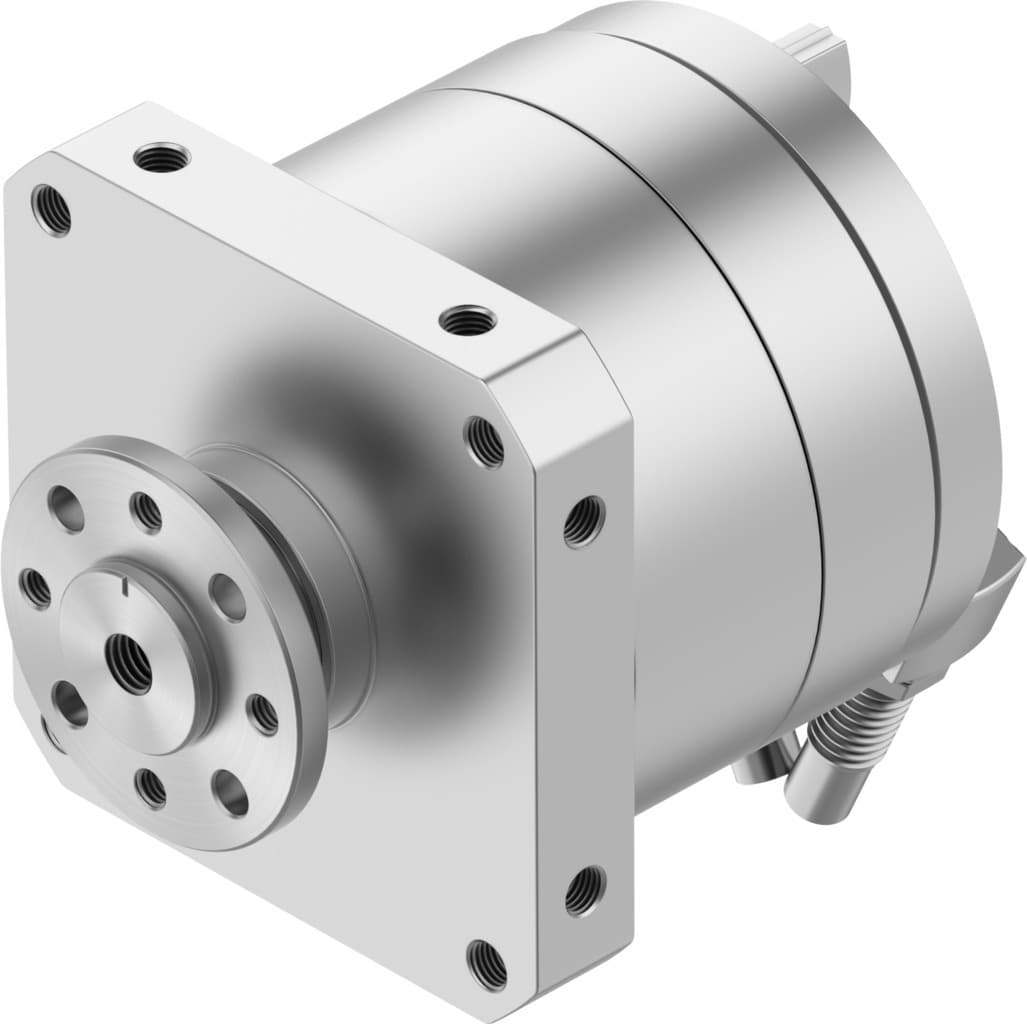

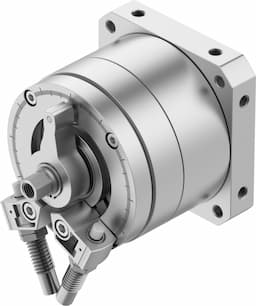

Festo DSM-T-32-270-CC-FW-A-B Semi-Rotary Drive | High-Quality Automation Solutions

Selling Points

1The Festo DSM-T-32-270-CC-FW-A-B semi-rotary drive offers a swivel angle adjustment range of 0 to 246 degrees, ensuring versatile positioning in various applications.
2Equipped with a double-sided shock absorber (CC), this drive provides smooth and controlled motion, reducing wear and tear on the system.
3The drive operates within a pressure range of 2 to 10 bar, making it compatible with a wide variety of pneumatic systems and applications.
4The DSM-T-32-270-CC-FW-A-B features a fine adjustment of up to -3 degrees, allowing for precise control and customization in your automation setup.
5Designed with a rotary vane construction and position detection for proximity switches, this semi-rotary drive ensures accurate and reliable operation in industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	32	Cushioning angle	12deg
Adjustment range of swivel angle	0deg 246deg	Swivel angle	0deg 246deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	0.7Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	75N
Max. radial force	200N	Theoretical torque at 6 bar	20Nm
Permissible mass moment of inertia	0.05kgm2	Product weight	2165g
Type of mounting	With internal thread	Pneumatic connection	G1/8
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1145107

Specifications may be subject to change without notice
