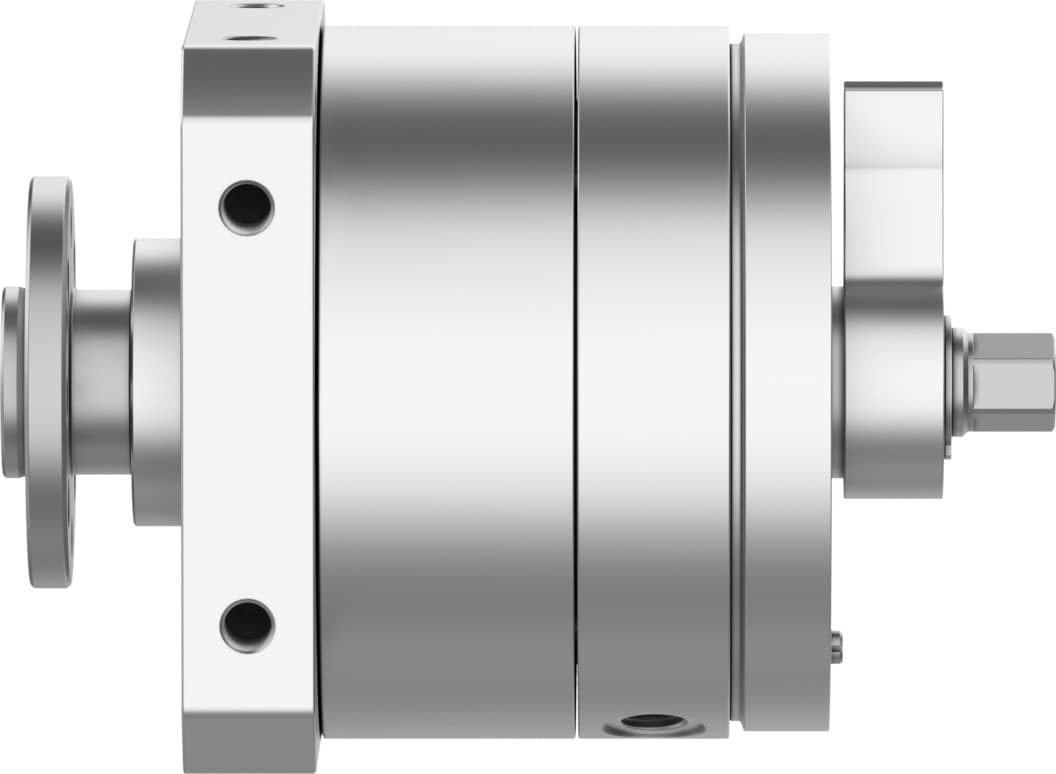

Festo DSM-T-32-270-P-FW-A-B Semi-Rotary Drive | High-Quality Automation Solutions

Selling Points

1High Precision Motion Control: The Festo DSM-T-32-270-P-FW-A-B semi-rotary drive offers a 270° swivel angle and adjustable rotation, ensuring precise motion control in various automation applications.
2Robust Design: With a 32mm size and elastic cushioning rings at both ends, this drive provides robust performance and durability, making it suitable for demanding industrial environments.
3Versatile Mounting Options: The drive features optional mounting positions and a fine adjustment of -6°, allowing for flexible installation and customization to meet specific application needs.
4Double-Acting Operation: Designed for double-acting mode of operation, this semi-rotary drive ensures reliable and efficient operation in both directions, enhancing overall system performance.
5Comprehensive Compatibility: Compatible with compressed air to ISO 8573-1:2010, this drive supports a wide range of operating pressures (2 bar to 10 bar) and ambient temperatures (-10°C to 60°C), making it versatile for various industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	32	Swivel angle	0deg 270deg
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	75N
Max. radial force	200N	Theoretical torque at 6 bar	20Nm
Product weight	1940g	Type of mounting	With internal thread
Pneumatic connection	G1/8	Note on materials	RoHS-compliant
Drive shaft material	Steel Nickel-plated	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy	Manufacturer ID	1145131

Specifications may be subject to change without notice
