Product Model

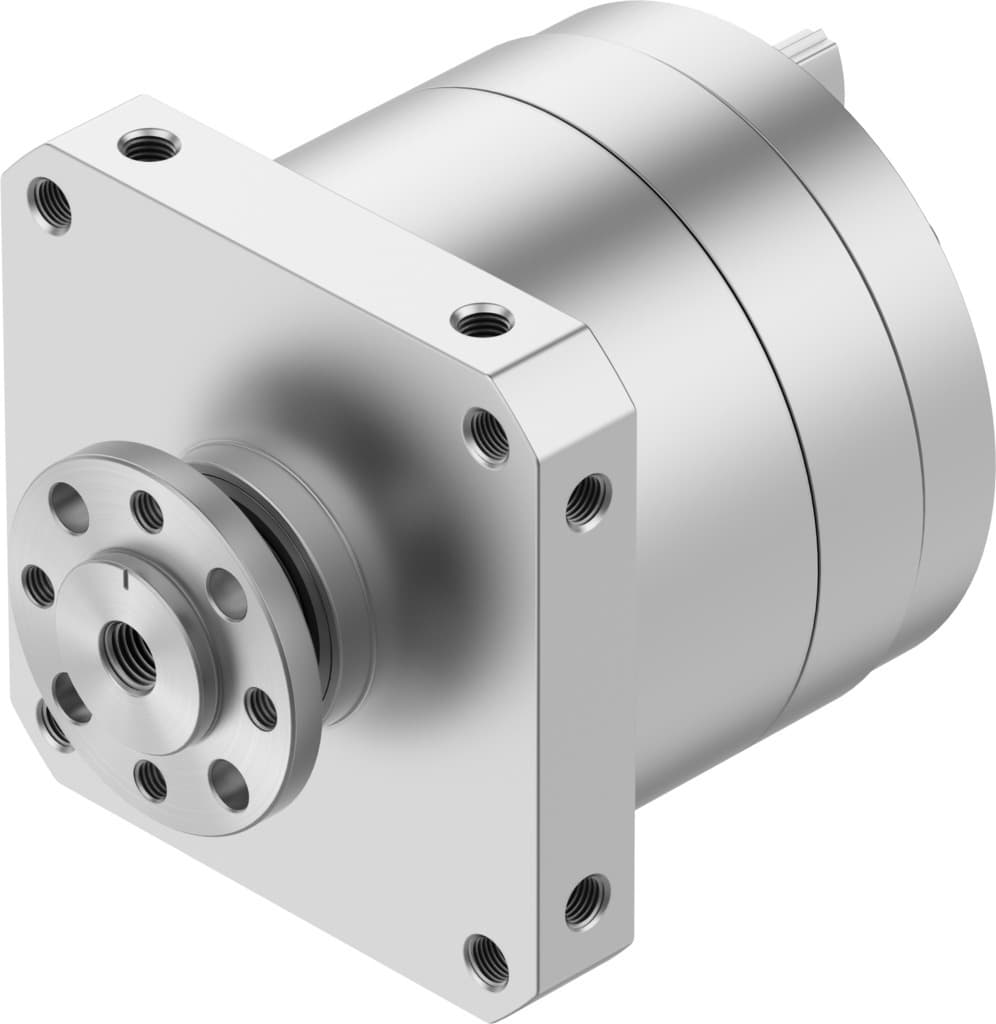

dsm-t-40-270-fw-a-b
Selling Points
- 1Precision Swivel Angle: The Festo DSM-T-40-270-FW-A-B features a swivel angle of 0-270°, providing extensive flexibility in positioning and operation.
- 2Flexible Cushioning: Equipped with flexible cushioning rings/plates at both ends, this semi-rotary drive ensures smooth operation and reduces wear and tear.
- 3Double-Acting Operation: Designed for double-acting operation, the DSM-T-40-270-FW-A-B can handle both forward and reverse movements efficiently.
- 4Versatile Assembly Position: The drive can be assembled in any position, making it suitable for a wide range of applications and installations.
- 5High Operating Pressure Range: Compatible with operating pressures from 2 to 10 bar, this semi-rotary drive offers reliability and performance across various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 120N |
Max. radial force | 350N | Theoretical torque at 6 bar | 40Nm |
Product weight | 3705g | Type of mounting | With internal thread |
Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145132 |
Specifications may be subject to change without notice
