Product Model

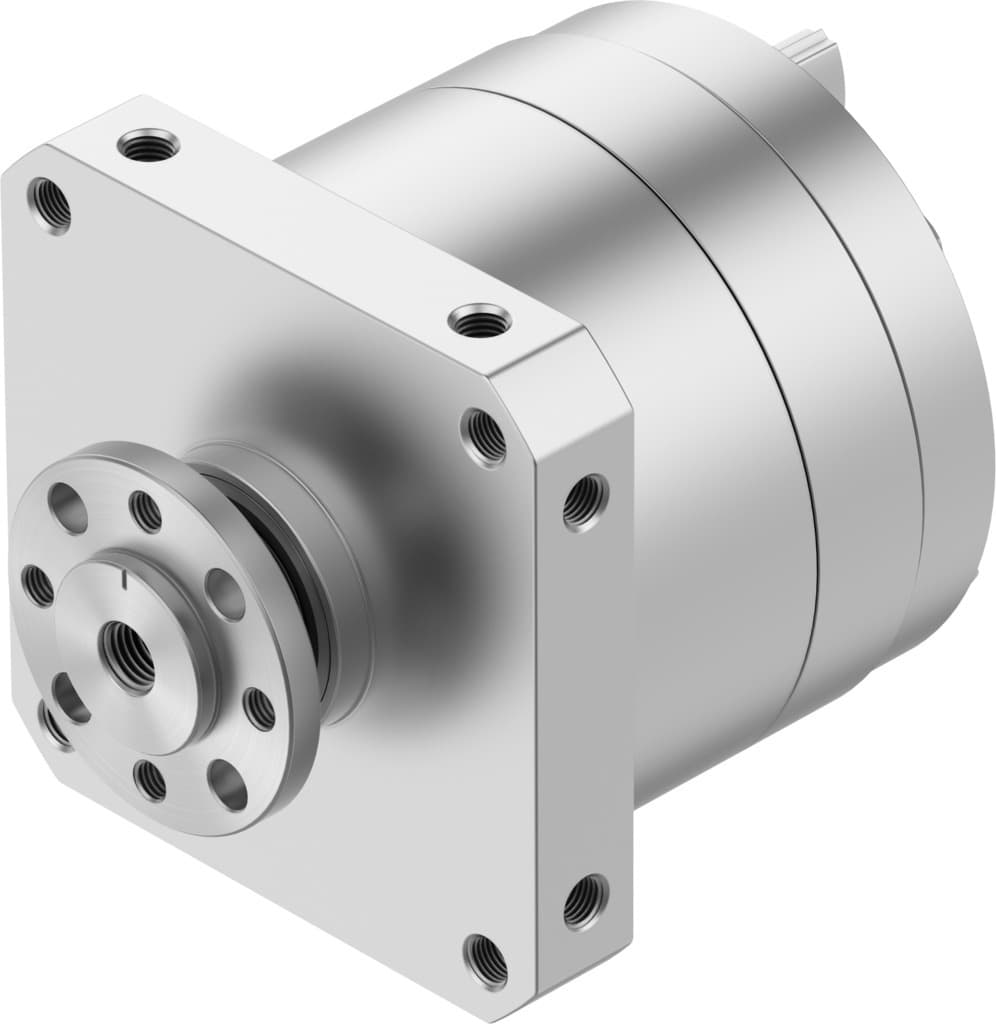

dsm-t-40-270-p-fw-a-b
Selling Points
- 1The DSM-T-40-270-P-FW-A-B features flexible cushioning rings/plates at both ends, ensuring smooth operation and reducing wear on the drive.
- 2With a rotation angle adjustment range of 0 to 270 degrees, this semi-rotary drive offers versatile positioning capabilities.
- 3Designed for double-acting operation, the DSM-T-40-270-P-FW-A-B supports both forward and reverse movements, enhancing its versatility.
- 4Equipped with position detection via proximity switch, this drive ensures accurate positioning and reliable operation.
- 5Operating with compressed air in accordance with ISO 8573-1:2010, the DSM-T-40-270-P-FW-A-B is suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Cushioning angle | 2deg |
Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Precision adjustment | -6deg | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 120N |
Max. radial force | 350N | Theoretical torque at 6 bar | 40Nm |
Permissible mass moment of inertia | 0.035kgm2 | Product weight | 4005g |
Type of mounting | With internal thread | Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
Manufacturer ID | 1145111 |
Specifications may be subject to change without notice
