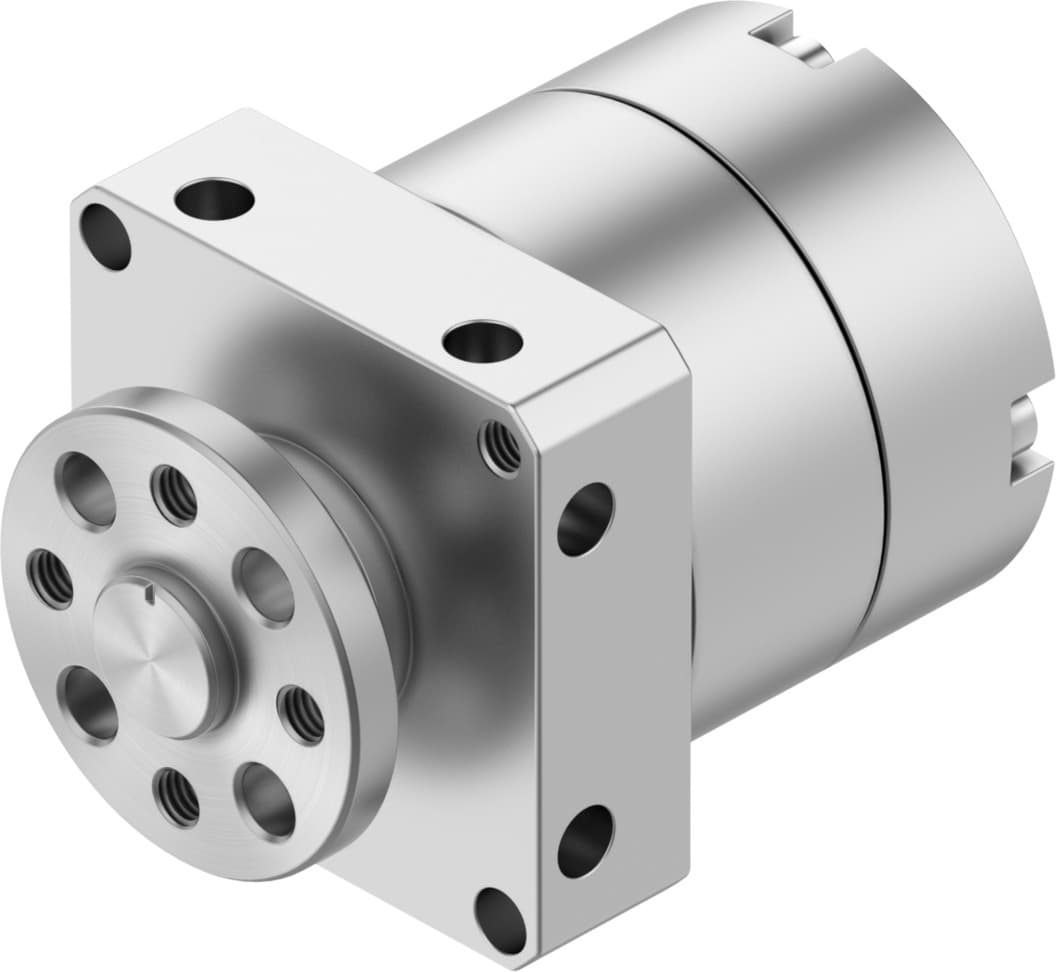

Festo DSM-T-6-180-P-FW Semi-Rotary Drive Specifications

Selling Points

1The DSM-T-6-180-P-FW semi-rotary drive features high-quality bearing elements, ensuring very high load torques and precise bearing with high running accuracy.
2This drive offers a swivel angle of 180 degrees, providing flexibility in various industrial applications. It also supports adjustable swivel angles for customized setups.
3Designed for use with compressed air to ISO 8573-1:2010, the DSM-T-6-180-P-FW operates within a pressure range of 3.5 to 8 bar, ensuring efficient performance in pneumatic systems.
4Built with high-alloy stainless steel for the drive shaft and TPE-U(PU) seals, this semi-rotary drive is robust and durable, suitable for demanding industrial environments.
5The DSM-T-6-180-P-FW can be mounted via a female thread, making installation straightforward and hassle-free. It also supports elastic cushioning rings/plates at both ends for added stability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	6	Cushioning angle	0.5deg
Swivel angle	0deg 180deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	None
Symbol	00991265	Operating pressure	4bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Theoretical torque at 6 bar	0.3Nm
Permissible mass moment of inertia	6.5E-4kgm2	Product weight	65g
Type of mounting	With internal thread	Pneumatic connection	M3
Note on materials	RoHS-compliant	Drive shaft material	High-alloy stainless steel
Seals material	TPE-U(PU)	Housing material	Aluminum Anodized
Manufacturer ID	1565483
