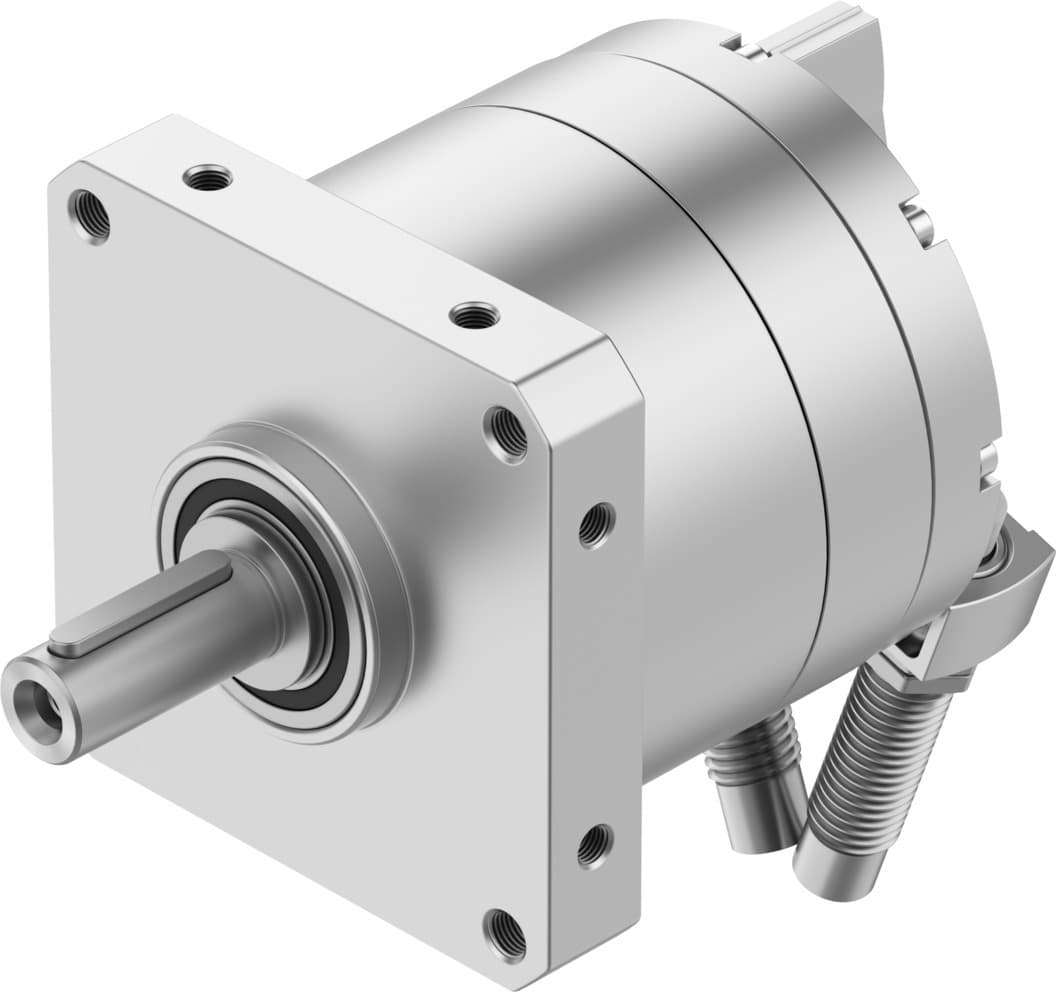

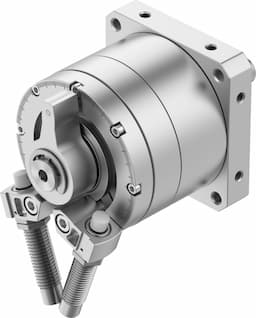

Festo DSM-T-63-270-CC-A-B: Semi-Rotary Drive for Efficient Automation

Selling Points

1The Festo DSM-T-63-270-CC-A-B semi-rotary drive offers a cushioning angle of 17.5 degrees, ensuring smooth operation and reducing wear on components.
2This semi-rotary drive features a rotation angle adjustment range of 0 to 240 degrees, providing flexibility in various automation applications.
3Equipped with shock absorbers at both ends, the DSM-T-63-270-CC-A-B provides enhanced stability and reduces vibrations, ensuring precise control.
4The drive operates at pressures between 0.2 MPa and 1 MPa (2 bar to 10 bar), making it suitable for a wide range of pneumatic systems.
5With a maximum swivel frequency of 0.6 Hz at 0.6 MPa (6 bar), this semi-rotary drive ensures efficient operation in high-demand applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	63	Cushioning angle	17.5deg
Adjustment range of swivel angle	0deg 240deg	Swivel angle	0deg 240deg
Cushioning	Pneumatic shock absorber at both ends	Mounting position	Any
Precision adjustment	-3deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2bar 10bar
Max. swivel frequency at 6?bar	0.6Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	500N
Max. radial force	500N	Theoretical torque at 6 bar	80Nm
Permissible mass moment of inertia	0.5kgm2	Product weight	6980g
Type of mounting	With internal thread	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1145118
