Product Model

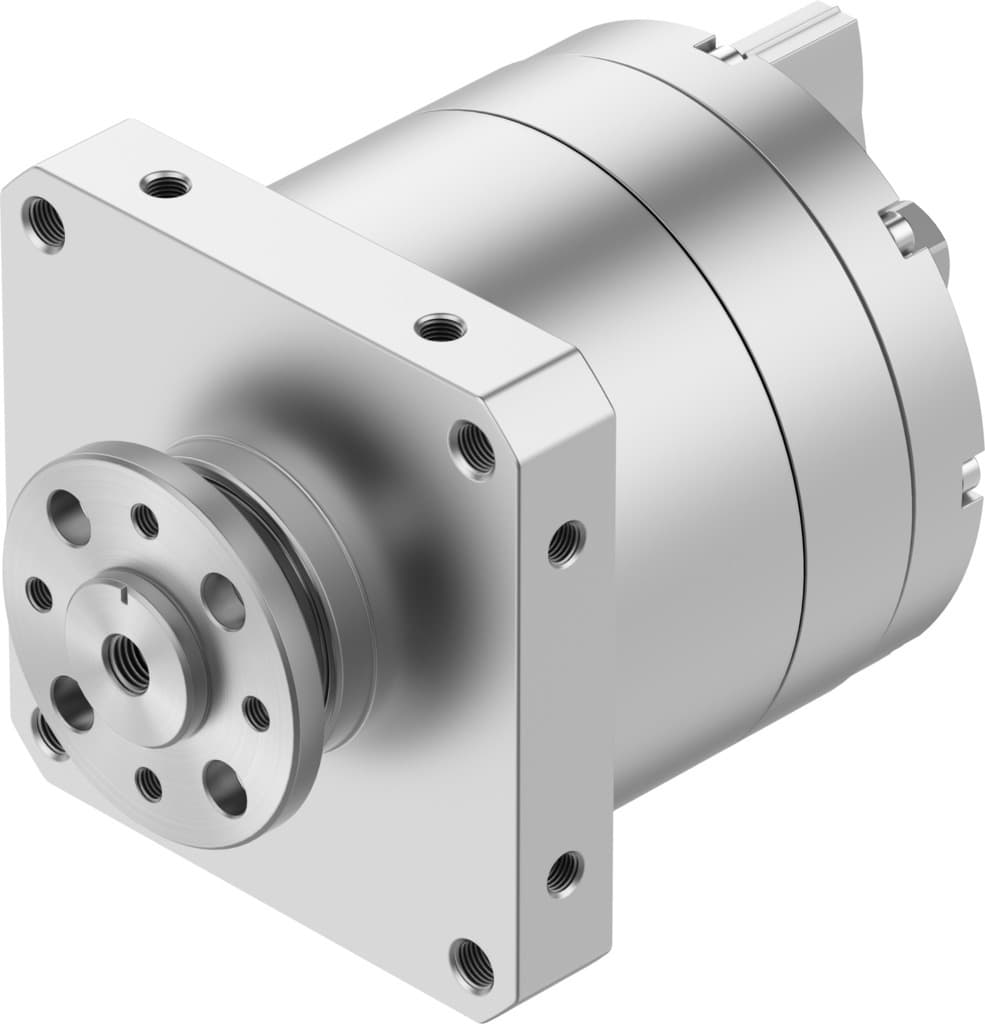

dsm-t-63-270-fw-a-b
Selling Points
- 1The DSM-T-63-270-FW-A-B offers a rotation angle adjustment range of 0 to 270 degrees and a swivel angle of 0 to 270 degrees, providing precise control in various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this semi-rotary drive ensures smooth operation and reduces wear and tear, extending its lifespan.
- 3Designed to operate with compressed air to ISO 8573-1:2010 standards, this drive is reliable and efficient in a wide range of industrial environments.
- 4Made from high-quality materials including steel, nickel-plated drive shaft, TPE-U(PU) seals, and wrought aluminum alloy housing, the DSM-T-63-270-FW-A-B is built to withstand heavy use and harsh conditions.
- 5Available for mounting via female thread pneumatic connection G1/4, this semi-rotary drive offers flexibility in installation, making it suitable for various industrial automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Swivel angle | 0deg 270deg |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | For proximity sensor |
Symbol | 00991265 | Operating pressure | 2bar 10bar |
Max. swivel frequency at 6?bar | 1.6Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C 60°C | Max. axial force | 500N |
Max. radial force | 500N | Theoretical torque at 6 bar | 80Nm |
Product weight | 6305g | Type of mounting | With internal thread |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Drive shaft material | Steel Nickel-plated | Seals material | TPE-U(PU) |
Housing material | Wrought aluminum alloy | Manufacturer ID | 1145133 |
Specifications may be subject to change without notice
