Product Model

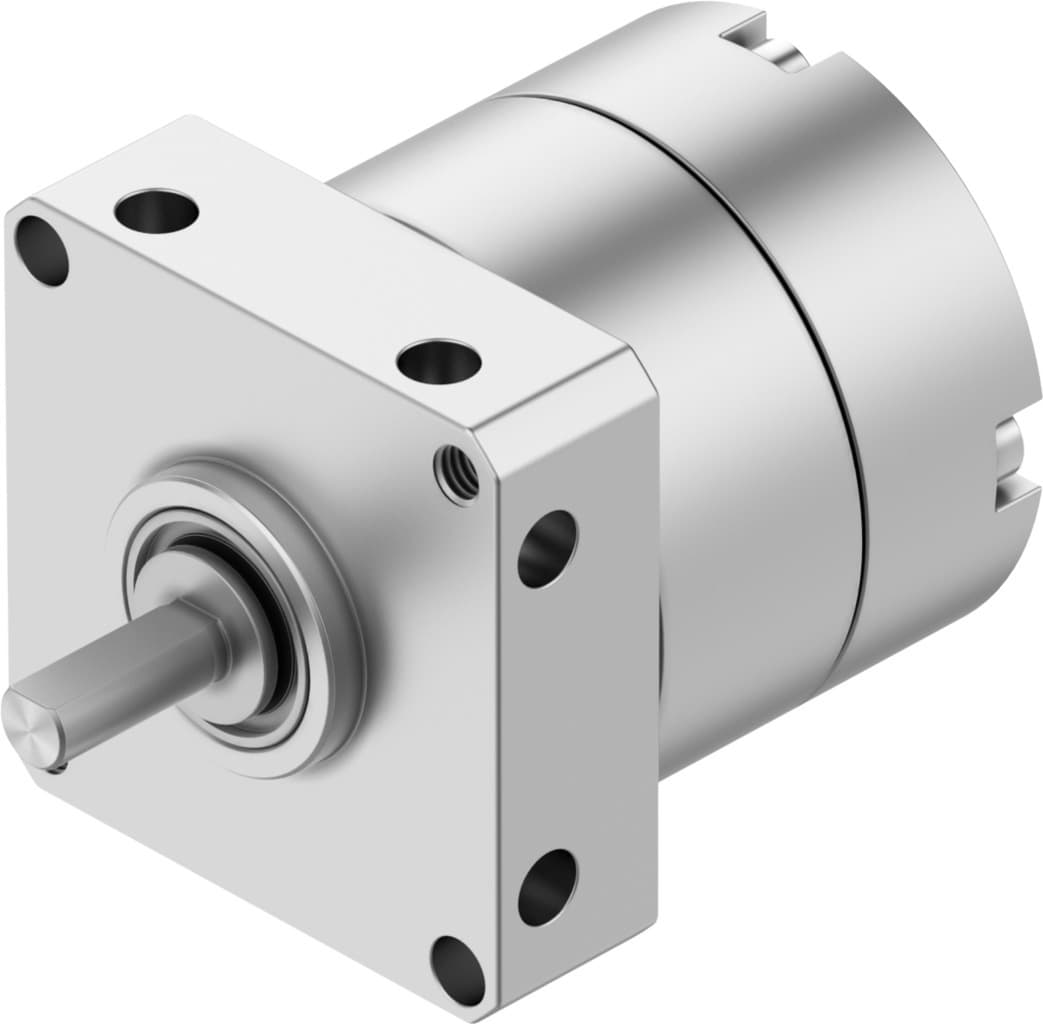

dsm-t-6-90-p
Selling Points
- 1The Festo DSM-T-6-90-P offers an adjustable swivel angle from 0 to 90 degrees, ensuring precise movement and flexibility in various applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this semi-rotary drive provides smooth operation and reduces wear and tear.
- 3Designed to operate at pressures between 4 and 8 bar, the DSM-T-6-90-P is suitable for demanding applications requiring high torque.
- 4Made from high-alloy stainless steel for the drive shaft and TPE-U(PU) for seals, this drive ensures durability and reliability.
- 5Compatible with compressed air to ISO 8573-1:2010 [7:4:4], making it suitable for a wide range of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Cushioning angle | 0.5deg |
Swivel angle | 0deg 90deg | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Mode of operation | Double-acting |
Structural design | Rotary vane | Position sensing | None |
Symbol | 00991265 | Operating pressure | 4bar 8bar |
Max. swivel frequency at 6?bar | 3Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 0°C 60°C | Theoretical torque at 6 bar | 0.3Nm |
Permissible mass moment of inertia | 6.5E-4kgm2 | Product weight | 60g |
Type of mounting | With internal thread | Pneumatic connection | M3 |
Note on materials | RoHS-compliant | Drive shaft material | High-alloy stainless steel |
Seals material | TPE-U(PU) | Housing material | Aluminum Anodized |
Manufacturer ID | 1564894 |
Specifications may be subject to change without notice
