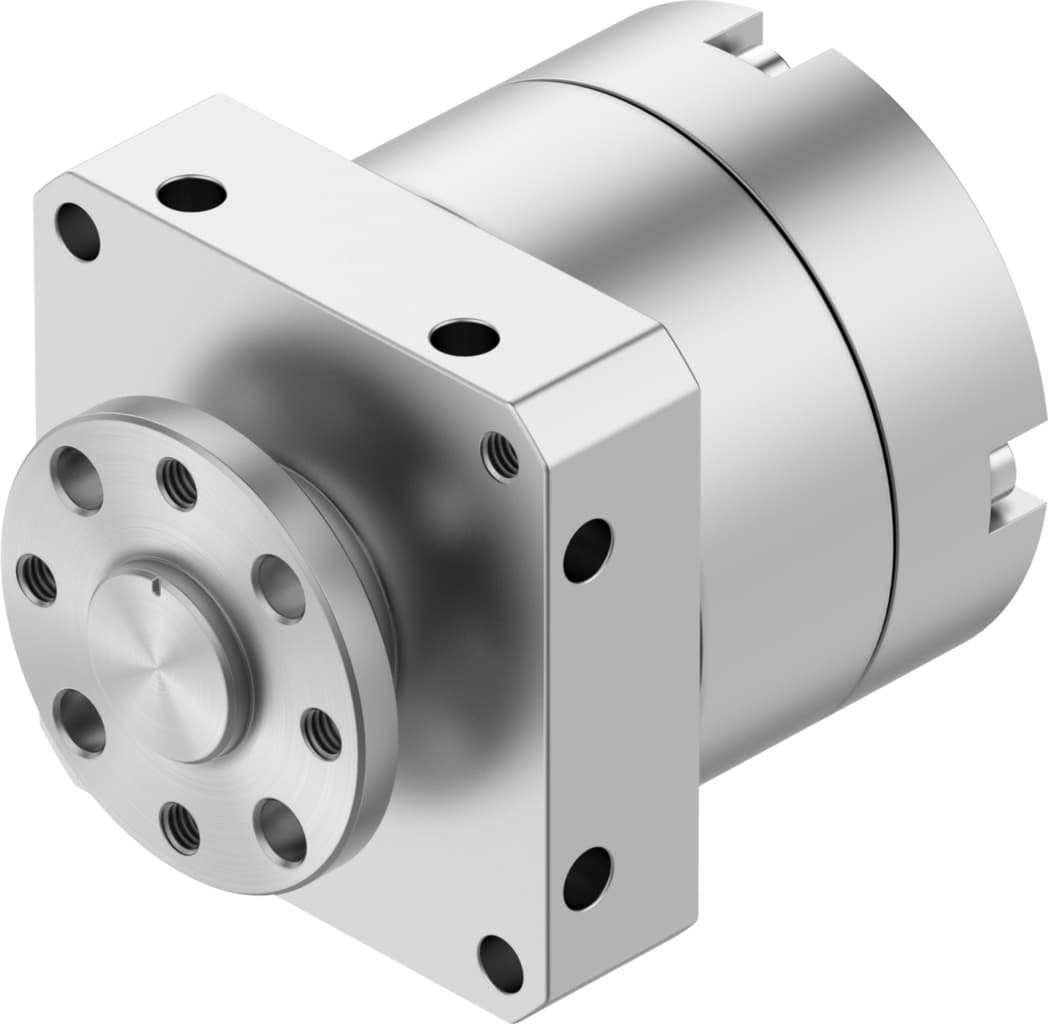

Festo DSM-T-8-180-P-FW Semi-Rotary Drive | High-Quality Pneumatic Solution

Selling Points

1High-Performance Operation: The DSM-T-8-180-P-FW operates efficiently with compressed air to ISO 8573-1:2010, ensuring reliable performance in various industrial settings.
2Adjustable Swivel Angle: This semi-rotary drive offers a swivel angle adjustment range of 0 to 180 degrees, providing flexibility for precise positioning in applications.
3Elastic Cushioning Rings: Equipped with elastic cushioning rings at both ends, the DSM-T-8-180-P-FW reduces wear and tear, ensuring long-lasting operation.
4Compact Design: With a product weight of 147 grams and a mounting via female thread, this drive is compact and easy to integrate into various systems.
5Material Quality: Constructed from high-alloy stainless steel for the drive shaft, TPE-U(PU) for seals, and anodized aluminum for the housing, this drive meets RoHS compliance standards for environmental sustainability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	8	Cushioning angle	0.5deg
Swivel angle	0deg 180deg	Cushioning	Elastic cushioning rings/pads at both ends
Mounting position	Any	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	None
Symbol	00991265	Operating pressure	4bar 8bar
Max. swivel frequency at 6?bar	3Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	0°C 60°C	Theoretical torque at 6 bar	0.7Nm
Permissible mass moment of inertia	0.0013kgm2	Product weight	117g
Type of mounting	With internal thread	Pneumatic connection	M3
Note on materials	RoHS-compliant	Drive shaft material	High-alloy stainless steel
Seals material	TPE-U(PU)	Housing material	Aluminum Anodized
Manufacturer ID	1564669

Specifications may be subject to change without notice
