Product Model

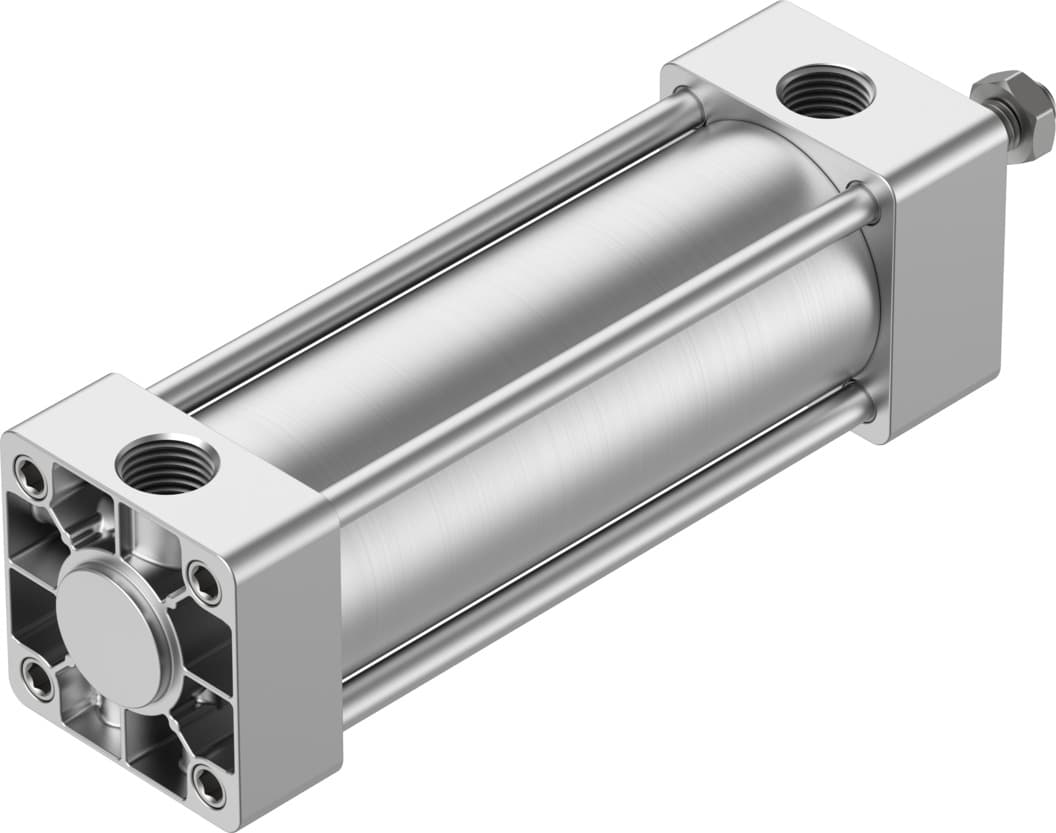

dsna-n-1 1/2"- -
Selling Points
- 1The DSNA-N 1 1/2" cylinder offers pneumatic cushioning that can be adjusted at both ends for optimal control and reduced wear.
- 2This cylinder provides various mounting positions, including direct mounting via thread, flange on end cap, and swivel mounting, ensuring flexibility in installation.
- 3The DSNA-N 1 1/2" cylinder conforms to NFPA/T3.6.7 standards, ensuring compatibility and reliability in industrial settings.
- 4It operates within a pressure range of 0.089 MPa to 0.965 MPa (12.905 psi to 139.925 psi), making it suitable for demanding applications.
- 5Made from high-alloy stainless steel for the piston rod and smooth-anodized wrought aluminum alloy for the cylinder barrel, this cylinder offers robustness and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 6.35mm 1219.2mm | Piston diameter | 1 1/2" |
Piston rod thread | 7/16-20 UNF-2B 7/16-20 UNF-2A 5/8-18 UNF-2A 1/2-20 UNF-2A | Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | Any | Conforms to standard | NFPA/T3.6.7 |
Piston rod end | External thread Internal thread | Structural design | Piston Piston rod Tie rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991235 00991237 |
Variants | Flange on end cap Flange on bearing cap Foot mounting Internal thread on piston rod Special thread on piston rod Swiveling rod eye mounting on the end cap Through piston rod Screwed-on swivel mounting position Swivel mounting on end cap Swivel clevis on end cap Spacer bolt on end cap end Spacer bolt on bearing cap end Temperature range -5 - 80°C Piston rod at one end | Operating pressure | 12.905psi 139.925psi |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Ambient temperature | -5°C 80°C |
Theoretical force at 6 bar, retracting | 143N | Theoretical force at 6 bar, advancing | 170N |
Type of mounting | Optionally: Direct fastening via thread With accessories | Pneumatic connection | 3/8 NPT |
Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
Seals material | FPM NBR | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8117043 |
Specifications may be subject to change without notice
