Product Model

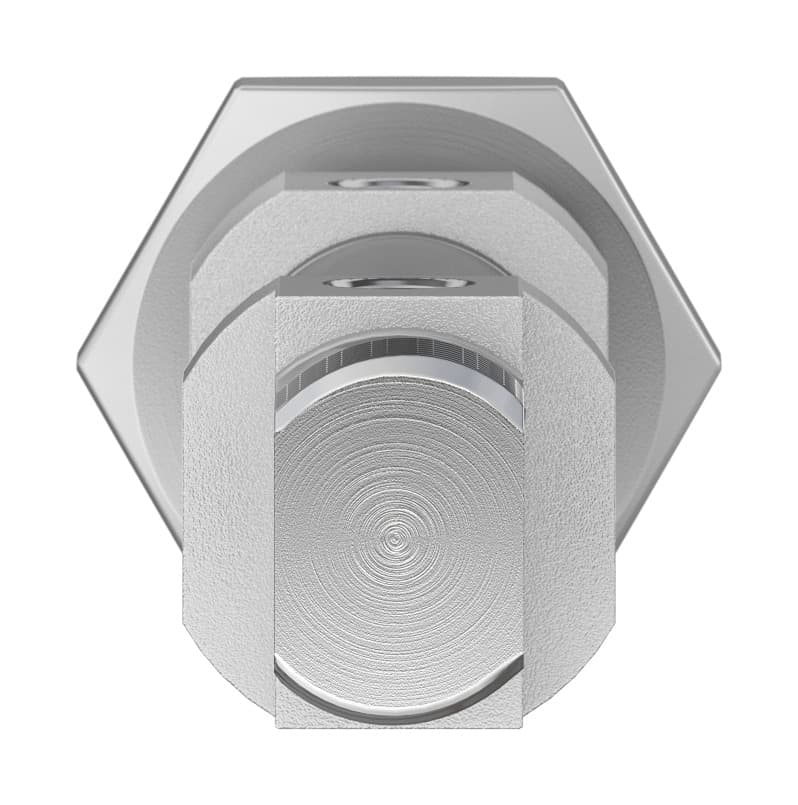

dsnu-10-15-p-a
Selling Points
- 1The Festo DSNU-10-15-P-A pneumatic piston rod cylinder is designed for precision applications in automation, electronics, and mechanical industries, ensuring robust performance in various environments.
- 2This double-acting pneumatic actuator features elastic cushioning for smooth operation and an M5 pneumatic connection for easy installation and integration.
- 3The cylinder adheres to ISO 6432 standards and offers various mounting options, including configurations with or without additional mounting components.
- 4With a 15mm stroke and 10mm bore, the DSNU-10-15-P-A is versatile and suitable for proximity sensing applications, providing reliable performance under controlled conditions.
- 5The cylinder operates effectively within a pressure range of 1.5 to 10 bar, making it suitable for a wide range of industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 15mm | Piston diameter | 10 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.05J |
Theoretical force at 6 bar, retracting | 39.6N | Theoretical force at 6 bar, advancing | 47.1N |
Moving mass at 0?mm stroke | 8.5g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 37.3g | Additional weight per 10?mm stroke | 2.7g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908251 |
Specifications may be subject to change without notice
