Product Model

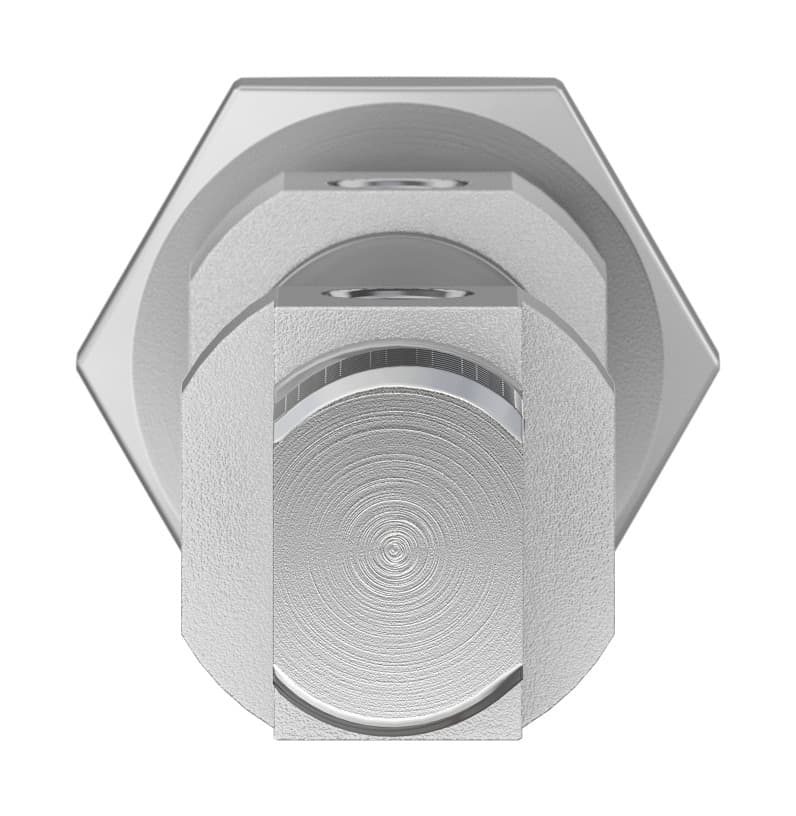

dsnu-10-20-p-a
Selling Points
- 1The Festo DSNU-10-20-P-A is a double-acting ISO cylinder with a 10mm piston diameter and a 20mm stroke, ensuring precise and reliable operation in various industrial applications.
- 2This cylinder features elastic cushioning rings/plates on both sides, providing effective damping and reducing wear and tear, ensuring smooth operation and extended lifespan.
- 3The Festo DSNU-10-20-P-A is designed to operate within a wide pressure range of 1.5 to 10 bar, making it versatile for different industrial settings and applications.
- 4The cylinder is constructed from high-alloy stainless steel materials for the piston rod and cylinder barrel, ensuring high corrosion resistance and durability in harsh environments.
- 5The Festo DSNU-10-20-P-A is compliant with international standards such as CETOP RP 52 P and ISO 6432, ensuring compatibility and reliability in global industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 20mm | Piston diameter | 10 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.05J |
Theoretical force at 6 bar, retracting | 39.6N | Theoretical force at 6 bar, advancing | 47.1N |
Moving mass at 0?mm stroke | 8.5g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 37.3g | Additional weight per 10?mm stroke | 2.7g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908252 |
Specifications may be subject to change without notice
