Product Model

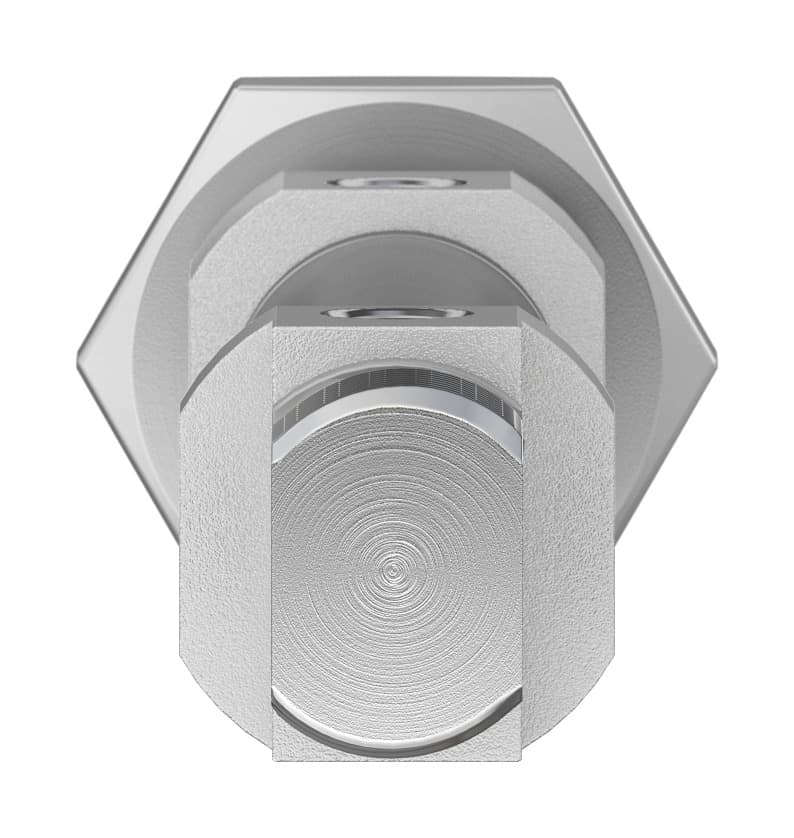

dsnu-10-30-p-a
Selling Points
- 1The Festo DSNU-10-30-PA pneumatic cylinder is designed with high-alloy stainless steel materials for piston rod and cylinder barrel, ensuring durability and resistance to corrosion.
- 2This cylinder operates double-acting, allowing for both extension and retraction, making it versatile for a wide range of industrial applications.
- 3The DSNU-10-30-PA complies with ISO 6432 and CETOP RP 52 P standards, ensuring compatibility and reliability in various industrial settings.
- 4Equipped with elastic silencer rings/pads at both ends, this cylinder provides effective cushioning and reduces noise during operation.
- 5The cylinder is compatible with proximity sensors for position detection, enhancing precision and control in automated systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 30mm | Piston diameter | 10 mm |
Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
Position sensing | For proximity sensor | Symbol | 00991217 |
Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.05J |
Theoretical force at 6 bar, retracting | 39.6N | Theoretical force at 6 bar, advancing | 47.1N |
Moving mass at 0?mm stroke | 8.5g | Additional moving mass per 10?mm stroke | 1g |
Basic weight with 0?mm stroke | 37.3g | Additional weight per 10?mm stroke | 2.7g |
Type of mounting | With accessories | Pneumatic connection | M5 |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 1908253 |
Specifications may be subject to change without notice
