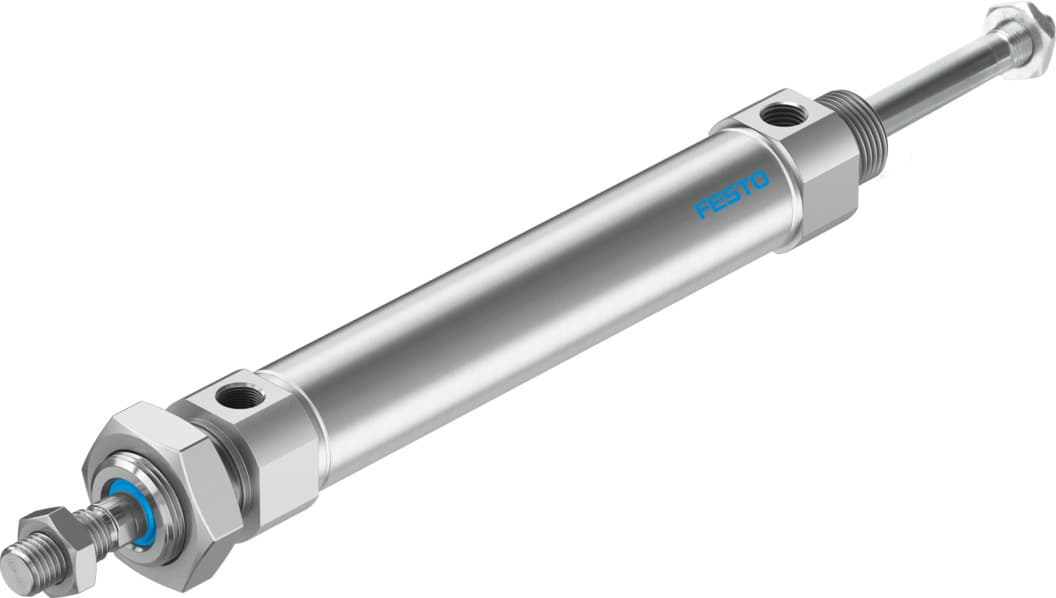

Product Model
dsnu-1/2"- -ppv-a-s2
Selling Points
- 1Double-acting operation: The DSNU-1/2" cylinder operates in both directions, providing balanced performance and increased efficiency in industrial applications.
- 2Adjustable air cushioning: The PPV variant offers adjustable air cushioning at both ends, allowing for customized damping and reduced wear on the cylinder.
- 3Through piston rod: The S2 variant features a through piston rod, enabling reliable position sensing and precise control over the cylinder's movement.
- 4Corrosion resistance: With a corrosion resistance class of 2 according to Festo standard 940 070, the DSNU-1/2" cylinder is suitable for use in normal industrial environments with moderate corrosion resistance.
- 5Extensive accessory range: The DSNU series offers an extensive range of accessories, including flange mounting options and magnetic proximity sensors for position sensing, enhancing the versatility of the cylinder in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 10.16mm 203.2mm | Piston diameter | 1/2" |
Piston rod thread | 10-32 UNF-2A | Based on norm | ISO 6432 |
Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
Piston rod end | External thread | Structural design | Piston Piston rod |
Position sensing | For proximity sensor | Symbol | 00991237 |
Variants | Through piston rod | Operating pressure | 1bar 10bar |
Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
Impact energy in the end positions | 0.06996J | Cushioning length | 8.89mm |
Theoretical force at 6 bar, retracting | 45.283N | Theoretical force at 6 bar, advancing | 60.407N |
Moving mass at 0?mm stroke | 18.513g | Additional weight per 10?mm stroke | 2.013g |
Type of mounting | With accessories | Pneumatic connection | 10-32 UNF-2B |
Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548520 |
Specifications may be subject to change without notice
